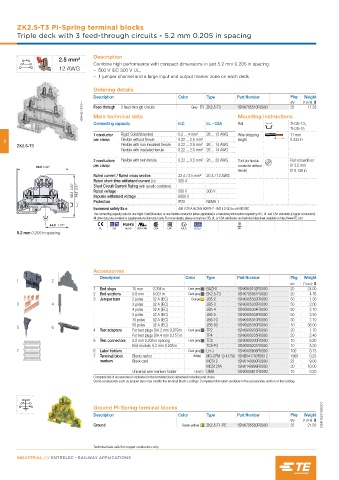

Page 60 - Railways Applications Terminal blocks

ZK2.5-T3 PI-Spring terminal blocks
Triple deck with 3 feed-through circuits - 5.2 mm 0.205 in spacing

Description
2.5 mm²
Combine high performance with compact dimensions in just 5.2 mm 0.205 in spacing:
12 AWG – 500 V IEC 300 V UL,
– 1 jumper channel and a large input and output marker zone on each deck.

Ordering details
Description Color Type Part Number Pkg (1 pce) g
Weight
1SNK162109V0014 Feed-through 3 feed-through circuits Grey ZK2.5-T3 1SNK705510R0000 25 17.33
qty
Main technical data
Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2 ... 4 mm² 26 ... 12 AWG Wire stripping 11 mm
2 per clamp Flexible without ferrule 0.22 ... 2.5 mm² length 0.433 in
ZK2.5-T3 Flexible with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
Flexible with insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
2 conductors Flexible with twin ferrule 0.22 ... 0.5 mm² 26 ... 20 AWG Tool (for flexible Flat screwdriver
99.6 3.89" per clamp conductor without Ø 3.5 mm
ferrule) Ø 0.138 in
Rated current / Rated cross section 22 A / 2.5 mm² 20 A / 12 AWG
Rated short-time withstand current (1s) 300 A
82.2 3.22" 74.7 2.91" Short Circuit Current Rating (with specific conditions) 500 V 300 V
Rated voltage
Impulse withstand voltage
IP20
Protection 8000 V NEMA 1
Increased safety Ex e 440 V 20 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/IIC/IIIC
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
44.9 1.73"
CE CB RoHS USR CNR CSA EAC ATEX IECEx BV
5.2 mm 0.205 in spacing

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 0.8 mm 0.031 in Dark grey EK2.5-T3 1SNK705961R0000 20 4.76
3 Jumper bars 2 poles 32 A (IEC) Orange JB5-2 1SNK905302R0000 50 1.30
3 4 3 poles 32 A (IEC) JB5-3 1SNK905303R0000 50 2.00
4 poles 32 A (IEC) JB5-4 1SNK905304R0000 50 2.70
5 poles 32 A (IEC) JB5-5 1SNK905305R0000 50 3.50
10 poles 32 A (IEC) JB5-10 1SNK905310R0000 30 7.10
50 poles 32 A (IEC) JB5-50 1SNK905350R0000 10 36.00
5 6
4 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
5 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
7 6 Label holders Dark grey LH-J 1SNK900606R0000 100 0.73
7 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
markers Blank card MC512 1SNK140000R0000 22 9.00
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground PI-Spring terminal blocks
Description Color Type Part Number Pkg Weight 1SNK162075S0201
qty (1 pce) g
Ground Green-yellow ZK2.5-T1-PE 1SNK705550R0000 25 21.53

Technical data valid for copper conductors only.
INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
