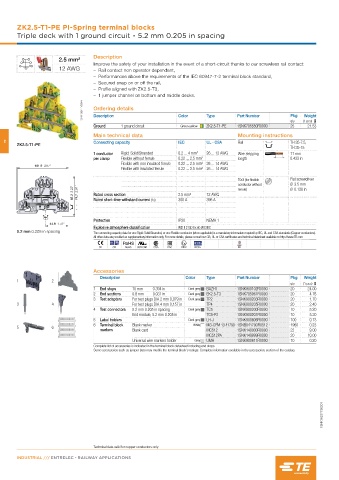

Page 64 - Railways Applications Terminal blocks

ZK2.5-T1-PE PI-Spring terminal blocks
Triple deck with 1 ground circuit - 5.2 mm 0.205 in spacing

Description
2.5 mm²
Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact:
12 AWG – Rail contact non operator dependent,
– Performances above the requirements of the IEC 60947-7-2 terminal block standard,
– Secured snap on or off the rail,
– Profile aligned with ZK2.5-T3,
– 1 jumper channel on bottom and middle decks.
1SNK162111V0014 Ordering details Color Type Part Number Pkg Weight

Description
25
Ground 1 ground circuit Green-yellow ZK2.5-T1-PE 1SNK705550R0000 qty (1 pce) g
21.53
Main technical data Mounting instructions
2 Connecting capacity IEC UL - CSA Rail TH 35-7.5,
ZK2.5-T1-PE
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2 ... 4 mm² 26 ... 12 AWG Wire stripping 11 mm
per clamp Flexible without ferrule 0.22 ... 2.5 mm² length 0.433 in
Flexible with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
101.9 3.97"
Flexible with insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
Tool (for flexible Flat screwdriver
conductor without Ø 3.5 mm
82.2 3.22" 74.7 2.91" Rated cross section 2.5 mm² 12 AWG ferrule) Ø 0.138 in
396 A
300 A
Rated short-time withstand current (1s)

Protection IP20 NEMA 1
44.9 1.73"
Explosive atmosphere classification IM2 II 2 GD Ex eb I/IIC/IIIC
5.2 mm 0.205 in spacing The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC ATEX IECEx BV

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 0.8 mm 0.031 in Dark grey EK2.5-T3 1SNK705961R0000 20 4.76
3 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
3 4 For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
4 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
5 Label holders Dark grey LH-J 1SNK900606R0000 100 0.73
6 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
5 6
markers Blank card MC512 1SNK140000R0000 22 9.00
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK162077S0201

Technical data valid for copper conductors only.
INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
