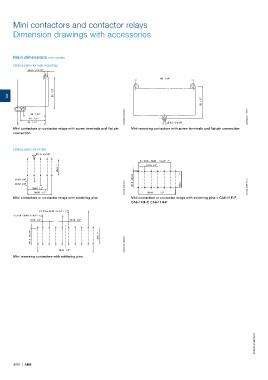

Mini contactors and contactor relays
Dimension drawings with accessories

Main dimensions mm, inches

Drilling plans for wall mounting
Ø 4.5 Ø 0.18"
90 3.54"

3 50 1.97"
50 1.97"

2CDC212009F0011 2CDC212011F0011
35 1.38"
40 1.57"
45 1.77" Ø 4.5 Ø 0.18"
Mini contactors or contactor relays with screw terminals and flat pin Mini reversing contactors with screw terminals and flat pin connection
connection

Drilling plans for PCBA
Ø 1.5 Ø 0.06"
5 x 10.16 = 50.83 5 x 0.4" = 2"
25.4 1" 10.16 0.4"

10.16 0.4" Ø1.5 Ø0.06" 1"
20.32 0.8" 25.4
30.48 1.2" 2CDC212010F0011 2CDC212001F0013
38.08 1.5" 58.43 2.3"
Mini contactors or contactor relays with soldering pins Mini contactors or contactor relays with soldering pins + CA6-11E-P,
CA6-11M-P, CA6-11N-P

3 x 10.6 = 30.48 3 x 0.4" = 1.2"
3 x 10.6 = 30.48 3 x 0.4" = 1.2"
10.16 0.4" 10.18 0.4"

Ø 0.06" 1" 25.4
Ø 1.5 2CDC212012F0011

86.34 3.4"
Mini reversing contactors with soldering pins

2CDC102043C0201
