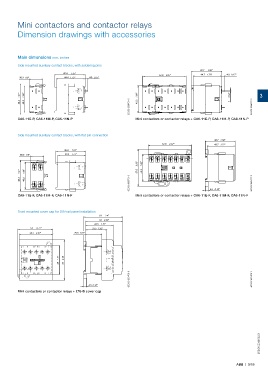

Mini contactors and contactor relays
Dimension drawings with accessories

Main dimensions mm, inches

Side mounted auxiliary contact blocks, with soldering pins
47.7 1.88"
47.4 1.87" 44.7 1.76" 4.3 0.17"
67.8 2.67"
20.3 0.8" 44.4 1.75" 4.3 0.17"

1.91" 1.66" 42.2 1.66" 0.04" 3
2CDC212006F0013 2CDC212002F0013
48.4 42.2 1

CA6-11E-P, CA6-11M-P, CA6-11N-P Mini contactors or contactor relays + CA6-11E-P, CA6-11M-P, CA6-11N-P

Side mounted auxiliary contact blocks, with flat pin connection
46.7 1.84"
67.8 2.67" 43.7 1.72"
46.4 1.83"
20.3 0.8" 43.4 1.71"

2.26" 1.66"
1.91" 1.66" 57.5 42.2
2CDC212005F0013 4.5 0.18" 2CDC212001F0013
48.4 42.2

CA6-11E-F, CA6-11M-F, CA6-11N-F Mini contactors or contactor relays + CA6-11E-F, CA6-11M-F, CA6-11N-F

Front mounted cover cap for DIN rail panel installation
61 2.4"
58 2.28"
43.5 1.71"
55 2.17" 33.5 1.32"
52.5 2.07" 25.6 1.01"

45 1.77" 63 2.48"

2CDC212004F0013 2CDC212004F0011

4.5 0.18"
Mini contactors or contactor relays + LT6-B cover cap

2CDC102043C0201

ABB | 3/55
