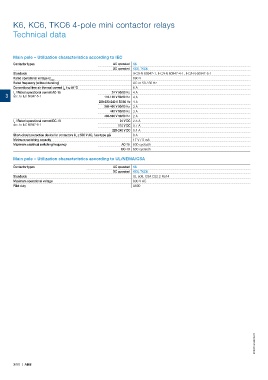

K6, KC6, TKC6 4-pole mini contactor relays
Technical data

Main pole – Utilization characteristics according to IEC
Contactor types AC operated K6
DC operated KC6, TKC6
Standards IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1
Rated operational voltage U emax 690 V
Rated frequency (without derating) DC or 50 / 60 Hz
Conventional free-air thermal current l θ ≤ 40 °C 6 A
th
I / Rated operational current AC-15 24 V 50/60 Hz 4 A
e
3 acc. to IEC 60947-5-1 110-120 V 50/60 Hz 4 A
220-230-240 V 50/60 Hz 4 A
380-400 V 50/60 Hz 3 A
440 V 50/60 Hz 3 A
480-500 V 50/60 Hz 2 A
I / Rated operational current DC-13 24 V DC 2.5 A
e
acc. to IEC 60947-5-1 110 V DC 0.7 A
220-240 V DC 0.4 A
Short-circuit protection device for contactors U ≤ 500 V AC, fuse type gG 6 A
e
Minimum switching capacity 17 V / 5 mA
Maximum electrical switching frequency AC-15 600 cycles/h
DC-13 600 cycles/h
Main pole – Utilization characteristics according to UL/NEMA/CSA

Contactor types AC operated K6
DC operated KC6, TKC6
Standards UL 508, CSA C22.2 No14
Maximum operational voltage 600 V AC
Pilot duty A600

2CDC102043C0201

3/50 | ABB
