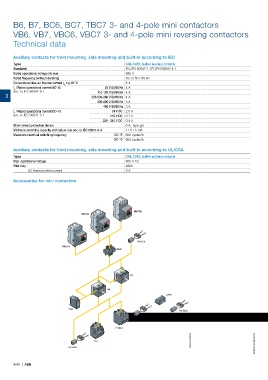

Page 110 - Motor_protection_and_control_Manual_motor_starters_ contactors

B6, B7, BC6, BC7, TBC7 3- and 4-pole mini contactors
VB6, VB7, VBC6, VBC7 3- and 4-pole mini reversing contactors

Technical data

Auxiliary contacts for front mounting, side mounting and built-in according to IEC
Types CA6, CAF6, built-in auxiliary contacts
Standards IEC/EN 60947-1, IEC/EN 60947-4-1
Rated operational voltage Ue max 690 V
Rated frequency (without derating) DC or 50 / 60 Hz
Conventional free-air thermal current l θ ≤ 40 °C 6 A
th
I / Rated operational current AC-15 24 V 50/60 Hz 4 A
e
acc. to IEC 60947-5-1 110-120 V 50/60 Hz 4 A
3 220-230-240 V 50/60 Hz 4 A
380-400 V 50/60 Hz 3 A
440 V 50/60 Hz 3 A
I / Rated operational current DC-13 24 V DC 2.5 A
e
acc. to IEC 60947-5-1 110 V DC 0.7 A
220 - 240 V DC 0.4 A
Short-circuit protection device 6 A, Type gG
Minimum switching capacity with failure rate acc. to IEC 60947-5-4 17 V / 5 mA
Maximum electrical switching frequency AC-15 600 cycles/h
DC-13 600 cycles/h

Auxiliary contacts for front mounting, side mounting and built-in according to UL/CSA
Types CA6, CAF6, built-in auxiliary contacts
Max. operational voltage 600 V AC
Pilot duty A600
AC thermal rated current 5 A
Accessories for mini contactors

MO132
MS132

RV-BC6
MS116
BEA7

B7

B6
CAF6

CA6
RV-BC6
RV-BC6

E16DU
2CDC212018F0011
T16 2CDC102043C0201
RV-BC6

3/48 | ABB
