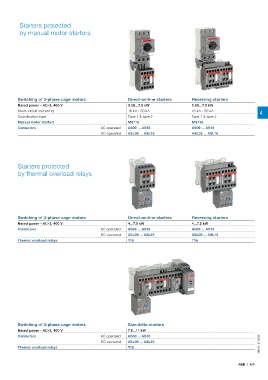

Starters protected
by manual motor starters

Switching of 3-phase cage motors Direct-on-line starters Reversing starters
Rated power - AC-3, 400 V 0.06...7.5 kW 0.06...7.5 kW
Short-circuit current Iq 16 kA - 50 kA 16 kA - 50 kA 4
Coordination type Type 1 & type 2 Type 1 & type 2
Manual motor starters MS116 MS116
Contactors AC operated AS09 ... AS16 AS09 ... AS16
DC operated ASL09 ... ASL16 ASL09 ... ASL16

Starters protected
by thermal overload relays

Switching of 3-phase cage motors Direct-on-line starters Reversing starters
Rated power - AC-3, 400 V 4...7.5 kW 4...7.5 kW
Contactors AC operated AS09 ... AS16 AS09 ... AS16
DC operated ASL09 ... ASL16 ASL09 ... ASL16
Thermal overload relays T16 T16

Switching of 3-phase cage motors Star-delta starters
Rated power - AC-3, 400 V 7.5...11 kW
Contactors AC operated AS09 ... AS16
DC operated ASL09 ... ASL16 1SBC101271S0201
Thermal overload relays T16

ABB | 4/9
