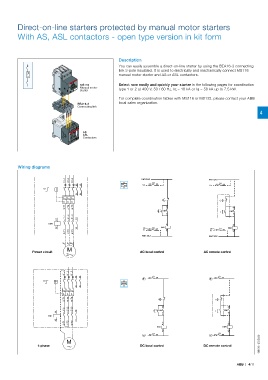

Direct-on-line starters protected by manual motor starters

With AS, ASL contactors - open type version in kit form

Description
You can easily assemble a direct-on-line starter by using the BEA16-3 connecting
link 3-pole insulated. It is used to electrically and mechanically connect MS116
manual motor starter and AS or ASL contactors.
I >
MS116 Select now easily and quickly your starter in the following pages for coordination
Manual motor type 1 or 2 at 400 V, 50 / 60 Hz, Iq = 16 kA or Iq = 50 kA up to 7.5 kW.
starter
For complete coordination tables with MS116 or MS132, please contact your ABB
BEA16-3 local sales organization.
Connecting link
4

AS
ASL
Contactors

Wiring diagrams

1/ L1 3/ L2 5/ L3 KM1:5/L3 KM1:5/L3
33 43 Us 33 Q1 34 Us 33 Q1 34
Q1
34 44
O O
I> I> I>
2/ T1 4/ T2 6/ T3 13 13
I KM1 I KM1
14 14
1/ L1 3/ L2 5/ L3
A1 13
KM1 A1 A1
A2 14 Us 43 Q1 44 KM1 Us 43 Q1 44 KM1
2/ T1 4/ T2 6/ T3 N A2 N A2
KM1:3/L2 KM1:3/L2
U 1 V 1 W 1
M
Power circuit AC local control AC remote control
3

1/ L1 3/ L2 5/ L3
33 43 + 33 Q1 34 + 33 Q1 34
Q1
34 44
I> I> I>
2/ T1 4/ T2 6/ T3 O O

1/ L1 3/ L2 5/ L3 KM1 13 KM1 13
A1 13 I I
14 14
KM1
A2 14
2/ T1 4/ T2 6/ T3 A1+ A1+
KM1 KM1
A2- A2-
- 43 Q1 44 - 43 Q1 44
M
1-phase DC local control DC remote control 1SBC101272S0201

ABB | 4/11
