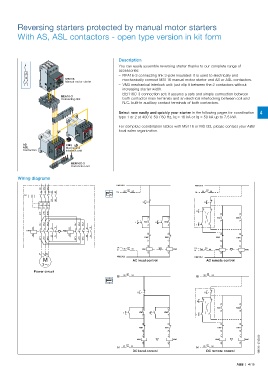

Reversing starters protected by manual motor starters

With AS, ASL contactors - open type version in kit form

Description
You can easily assemble reversing starter thanks to our complete range of
accessories:
– BEA16-3 connecting link 3-pole insulated: it is used to electrically and
I >
MS116 mechanically connect MS116 manual motor starter and AS or ASL contactors.
Manual motor starter
– VM3 mechanical interlock unit: just clip it between the 2 contactors without
increasing starter width.
– BER16C-3 connection set: it assures a safe and simple connection between
BEA16-3
Connecting link both contactor main terminals and an electrical interlocking between coil and
N.C. built-in auxiliary contact terminals of both contactors.
Select now easily and quickly your starter in the following pages for coordination 4
type 1 or 2 at 400 V, 50 / 60 Hz, Iq = 16 kA or Iq = 50 kA up to 7.5 kW.
For complete coordination tables with MS116 or MS132, please contact your ABB
local sales organization.

AS VM3
ASL Mechanical
Contactors interlock unit

BER16C-3
Connection set

Wiring diagrams
KM2:5/L3 KM2:5/L3
1/L1 3/L2 5/L3 Q1 Q1
33 43 Us 33 34 Us 33 34
Q1
34 44 O O
I> I> I>
2/T1 4/T2 6/T3 II 13 13
13 13 KM1 KM2
I KM1 II KM2 14 14
1/L1 3/L2 5/L3 1/L1 3/L2 5/L3 14 14 I
A1 21 13 A1 21 13
KM1 KM2
22 22 22 22
A2 22 14 A2 22 14
2/T1 4/T2 6/T3 2/T1 4/T2 6/T3 KM2 KM1 KM2 KM1

21 21 21 21
A1 A1 A1 A1
Us Q1 Us Q1
N 43 44 KM1 KM2 N 43 44 KM1 KM2
A2 A2 A2 A2
U 1 V 1 W 1 KM2:3/L2
M AC local control KM2:3/L2 AC remote control
3
Power circuit
Q1 Q1
+ 33 34 + 33 34
O O
II
13 13
KM1 KM2
13 13
I KM1 II KM2 14 14
14 14 I
22 22 22 22
KM2 KM1 KM2 KM1
21 21 21 21
A1+ A1+ A1+ A1+
KM1 KM2 KM1 KM2
A2- A2- A2- A2- 1SBC101274S0201
- 43 Q1 44 - 43 Q1 44
DC local control DC remote control
