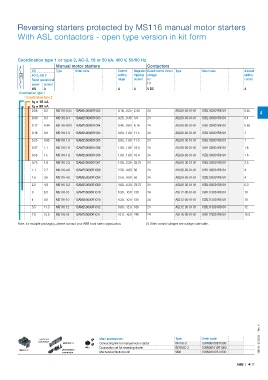

Reversing starters protected by MS116 manual motor starters

With ASL contactors - open type version in kit form

Coordination type 1 or type 2, AC-3, 16 or 50 kA, 400 V, 50/60 Hz
Manual motor starters Contactors
IEC Type Order code Current Magnetic Rated control circuit Type Order code Allowed
AC-3, 400 V setting tripping voltage setting
I >
Rated operational range current Uc current
power current (1)
kW A A A V DC A
Coordination type 1
Coordination type 2
Iq = 16 kA
Iq = 50 kA
0.06 0.2 MS116-0.25 1SAM250000R1002 0.16...0.25 2.44 24 ASL09-30-01-81 1SBL103001R8101 0.25 4
0.09 0.3 MS116-0.4 1SAM250000R1003 0.25...0.40 3.9 24 ASL09-30-01-81 1SBL103001R8101 0.4
0.12 0.44 MS116-0.63 1SAM250000R1004 0.40...0.63 6.14 24 ASL09-30-01-81 1SBL103001R8101 0.63
0.18 0.6 MS116-1.0 1SAM250000R1005 0.63...1.00 11.5 24 ASL09-30-01-81 1SBL103001R8101 1
0.25 0.85 MS116-1.0 1SAM250000R1005 0.63...1.00 11.5 24 ASL09-30-01-81 1SBL103001R8101 1
0.37 1.1 MS116-1.6 1SAM250000R1006 1.00...1.60 18.4 24 ASL09-30-01-81 1SBL103001R8101 1.6
0.55 1.5 MS116-1.6 1SAM250000R1006 1.00...1.60 18.4 24 ASL09-30-01-81 1SBL103001R8101 1.6
0.75 1.9 MS116-2.5 1SAM250000R1007 1.60...2.50 28.75 24 ASL09-30-01-81 1SBL103001R8101 2.5
1.1 2.7 MS116-4.0 1SAM250000R1008 2.50...4.00 50 24 ASL09-30-01-81 1SBL103001R8101 4
1.5 3.6 MS116-4.0 1SAM250000R1008 2.50...4.00 50 24 ASL09-30-01-81 1SBL103001R8101 4

2.2 4.9 MS116-6.3 1SAM250000R1009 4.00...6.30 78.75 24 ASL09-30-01-81 1SBL103001R8101 6.3
3 6.5 MS116-10 1SAM250000R1010 6.30...10.0 150 24 ASL12-30-01-81 1SBL113001R8101 10
4 8.5 MS116-10 1SAM250000R1010 6.30...10.0 150 24 ASL12-30-01-81 1SBL113001R8101 10
5.5 11.5 MS116-12 1SAM250000R1012 8.00...12.0 180 24 ASL12-30-01-81 1SBL113001R8101 12
7.5 15.5 MS116-16 1SAM250000R1011 10.0...16.0 240 24 ASL16-30-01-81 1SBL123001R8101 15.5
Note: for multiple packaging, please contact your ABB local sales organization. (1) Other control voltages see voltage code table.

upstream Main accessories Type Order code 1SBC101273S0201 - Rev. A
connection
BER16C-3 Connecting link for manual motor starter BEA16-3 1SBN081006T1000
VM3 Connection set for reversing starter BER16C-3 1SBN081012R1000
BEA16-3 downstream
connection Mechanical interlock unit VM3 1SBN031005T1000
