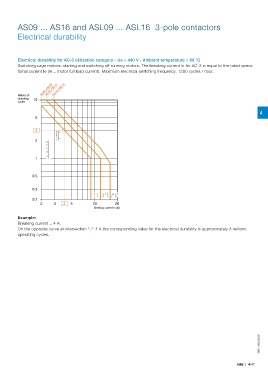

AS09 ... AS16 and ASL09 ... ASL16 3-pole contactors

Electrical durability

Electrical durability for AC-3 utilization category - Ue ≤ 440 V - Ambient temperature ≤ 60 °C
Switching cage motors: starting and switching off running motors. The breaking current Ic for AC-3 is equal to the rated opera-
tional current Ie (Ie = motor full load current). Maximum electrical switching frequency: 1200 cycles / hour.

AS09, ASL09 AS16, ASL16
AS12, ASL12
Millions of
operating 10
cycles
4
5

3 3 9
7
5
3
2 9 1
7
5
3
1
1

0.5

0.3
1 3 5 7 9
0.2
2 3 4 5 10 20
Breaking current Ic (A)

Example:
Breaking current = 4 A.
On the opposite curve at intersection " " 4 A the corresponding value for the electrical durability is approximately 3 millions
operating cycles.

1SBC101930S0201

ABB | 4/47
