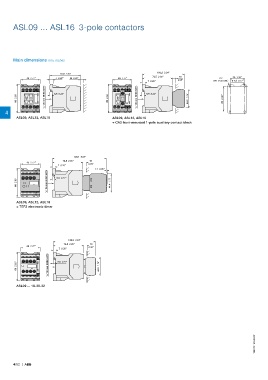

ASL09 ... ASL16 3-pole contactors

Main dimensions mm, inches

72.5 2.85" 100.2 3.94" 100.2 3.94"
35 1.38" 72.5 2.85" 35 1.38"
45 1.77" 7 0.28" 10 0.39" 2 x 45 1.77" 45 1.77" 72.5 2.85" 10 10 2 x 2 x 35 1.38"
ø 4.2 0.17"
M4 8-32 UNC ø 4.2 0.17" 7 0.28" 7 0.28" 0.39" 0.39" M4 8-32 UNC M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22" 35 mm EN/IEC 60715 5.5 0.22" 5.5 0.22"
35 mm EN/IEC 60715
68 2.68" 60 2.36" 68 2.68" 68 2.68" 44.2 1.74" 44.2 1.74" 60 2.36" 60 2.36"

4
ASL09, ASL12, ASL16 ASL09, ASL12, ASL16
+ CA3 front-mounted 1-pole auxiliary contact block

128.1 5.04"
72.5 2.85" 10 35 1.38"
45 1.77" 0.39" 2 x
7 0.28" M4 8-32 UNC ø 4.2 0.17"
1.1 0.05"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 44.4 1.75" 60 2.36"

ASL09, ASL12, ASL16
+ TEF3 electronic timer

100.2 3.94"
72.5 2.85" 10 35 1.38"
45 1.77" 0.39" 2 x
7 0.28" M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 44.2 1.74" 60 2.36"

ASL09 ... 16-30-32

1SBC101406S0201

4/52 | ABB
