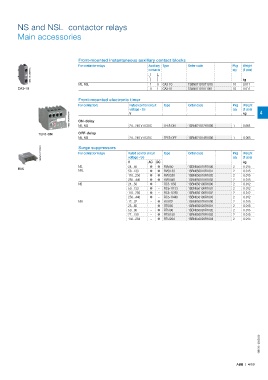

Page 179 - Motor_protection_and_control_Manual_motor_starters_ contactors

NS and NSL contactor relays

Main accessories

Front-mounted instantaneous auxiliary contact blocks
For contactor relays Auxiliary Type Order code Pkg Weight
1SBC101036F0014 kg
contacts
(1 pce)
qty
NS, NSL 1 0 CA3-10 1SBN011010T1010 10 0.011
CA3-10 0 1 CA3-01 1SBN011010T1001 10 0.011

Front-mounted electronic timer
For contactors Rated control circuit Type Order code Pkg Weight
voltage - Uc qty (1 pce) 4
V
1SBC101337F0014 ON-delay 24...240 V AC/DC TEF3-ON 1SBN021012R1000 1 0.065
kg
NS, NSL

TEF3-ON OFF-delay
NS, NSL 24...240 V AC/DC TEF3-OFF 1SBN021014R1000 1 0.065
1SBC574001F0301 Surge suppressors Rated control circuit Type Order code Pkg Weight
For contactor relays
qty
voltage - Uc
(1 pce)
NS, V 24...50 AC DC RV5/50 1SBN050010R1000 2 kg
0.015
●
●
RV5
NSL 50...133 ● ● RV5/133 1SBN050010R1001 2 0.015
110...250 ● ● RV5/250 1SBN050010R1002 2 0.015
250...440 ● ● RV5/440 1SBN050010R1003 2 0.015
NS 24...50 ● – RC5-1/50 1SBN050100R1000 2 0.012
50...133 ● – RC5-1/133 1SBN050100R1001 2 0.012
110...250 ● – RC5-1/250 1SBN050100R1002 2 0.012
250...440 ● – RC5-1/440 1SBN050100R1003 2 0.012
NSL 12...32 – ● RT5/32 1SBN050020R1000 2 0.015
25...65 – ● RT5/65 1SBN050020R1001 2 0.015
50...90 – ● RT5/90 1SBN050020R1002 2 0.015
77...150 – ● RT5/150 1SBN050020R1003 2 0.015
150...264 – ● RT5/264 1SBN050020R1004 2 0.015

1SBC101298S0201

ABB | 4/59
