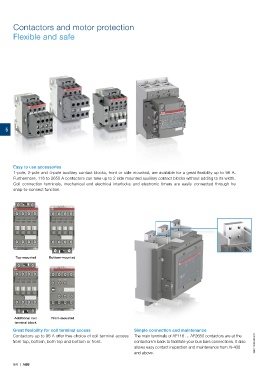

P. 206
Contactors and motor protection
Flexible and safe
5
Easy to use accessories
1-pole, 2-pole and 4-pole auxiliary contact blocks, front or side mounted, are available for a great flexibility up to 96 A.
Furthermore, 116 to 2650 A contactors can take up to 2 side mounted auxiliary contact blocks without adding to its width.
Coil connection terminals, mechanical and electrical interlocks and electronic timers are easily connected through he
snap-to-connect function.
Top-mounted Bottom-mounted
Additional coil Front-mounted
terminal block
Great flexibility for coil terminal access Simple connection and maintenance
Contactors up to 96 A offer free choice of coil terminal access The main terminals of AF116 … AF2650 contactors are at the
from top, bottom, both top and bottom or front. contactors's back to facilitate your bus bars connections. It also
allows easy contact inspection and maintenance from AF400 1SBC100202S0201
and above.
5/6 | ABB
