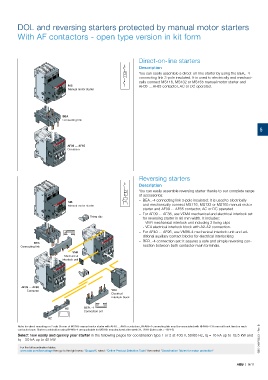

DOL and reversing starters protected by manual motor starters

With AF contactors - open type version in kit form

Direct-on-line starters
Description
You can easily assemble a direct-on-line starter by using the BEA..-4
connecting link 3-pole insulated. It is used to electrically and mechani-
I >
cally connect MS116, MS132 or MS165 manual motor starter and
MS AF09 ... AF65 contactor, AC or DC operated.
Manual motor starter

BEA
Connecting link
5

AF09 ... AF65
Contactor

Reversing starters

Description
You can easily assemble reversing starter thanks to our complete range
of accessories:
I >
– BEA..-4 connecting link 3-pole insulated: it is used to electrically
MS
Manual motor starter and mechanically connect MS116, MS132 or MS165 manual motor
starter and AF09 ... AF65 contactor, AC or DC operated
– For AF09 ... AF38, use VEM4 mechanical and electrical interlock set
Fixing clip for reversing starter in 90 mm width. It includes:
- VM4 mechanical interlock unit including 2 fixing clips
- VE4 electrical interlock block with A2-A2 connection.
– For AF40 ... AF96, use VM96-4 mechanical interlock unit and ad-
ditional auxiliary contact blocks for electrical interlocking
– BER..-4 connection set: it assures a safe and simple reversing con-
BEA
Connecting link nection between both contactor main terminals.
VM4
Mechanical
interlock unit

AF09 ... AF65
Contactor VE4
Electrical
interlock block

A2 BER..-4
Connection set
A2
Note: for direct mounting on 2 rails 35 mm of MS165 manual motor starter with AF40 ... AF65 contactors, BEA65-4 connecting link must be associated with BPR65-4 35 mm rail hook fixed on each
contactor base. Starter combination using BPR65-4 are applicable for MS165 manufactured after week 31, 2016 (date code > 16214).
Select now easily and quickly your starter in the following pages for coordination type 1 or 2 at 400 V, 50/60 Hz, Iq = 16 kA up to 18.5 kW and
Iq = 50 kA up to 45 kW. 1SBC101917S0201 - Rev. B

For the full coordination tables:
www.abb.com/lowvoltage then go to the right menu: "Support", select: "Online Product Selection Tools" then select "Coordination Tables for motor protection"
