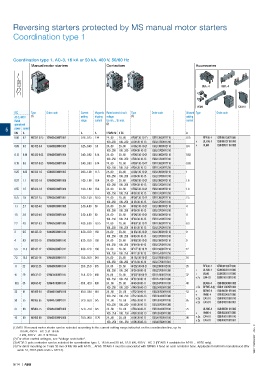

Reversing starters protected by MS manual motor starters

Coordination type 1

Coordination type 1, AC-3, 16 kA or 50 kA, 400 V, 50/60 Hz
Manual motor starters Contactors Accessories

+
I >
BEA..-4 BER..-4

VEM4 CA4-10
IEC Type Order code Current Magnetic Rated control circuit Type Order code Allowed Type Order code
AC-3, 400 V (1) setting tripping voltage (3) setting
Rated range current Uc min. ... Uc max. current
operational (2)
5 power current
kW A A A V 50/60 Hz V DC A
0.06 0.2 MS132-0.25 1SAM350000R1002 0.16...0.25 2.44 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 0.25 BEA16-4 1SBN081306T1000
100...250 100...250 AF09-30-10-13 1SBL137001R1310 + BER16-4 1SBN081311R1000
0.09 0.3 MS132-0.4 1SAM350000R1003 0.25...0.40 3.9 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 0.4 + VEM4 1SBN030111R1000
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.12 0.44 MS132-0.63 1SAM350000R1004 0.40...0.63 6.14 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 0.63
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.18 0.6 MS132-0.63 1SAM350000R1004 0.40...0.63 6.14 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 0.63
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.25 0.85 MS132-1.0 1SAM350000R1005 0.63...1.00 11.5 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 1
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.37 1.1 MS132-1.6 1SAM350000R1006 1.00...1.60 18.4 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 1.6
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.55 1.5 MS132-1.6 1SAM350000R1006 1.00...1.60 18.4 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 1.6
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.75 1.9 MS132-2.5 1SAM350000R1007 1.60...2.50 28.75 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 2.5
100...250 100...250 AF09-30-10-13 1SBL137001R1310
1.1 2.7 MS132-4.0 1SAM350000R1008 2.50...4.00 50 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 4
100...250 100...250 AF09-30-10-13 1SBL137001R1310
1.5 3.6 MS132-4.0 1SAM350000R1008 2.50...4.00 50 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 4
100...250 100...250 AF09-30-10-13 1SBL137001R1310
2.2 4.9 MS132-6.3 1SAM350000R1009 4.00...6.30 78.75 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 6.3
100...250 100...250 AF09-30-10-13 1SBL137001R1310
3 6.5 MS132-10 1SAM350000R1010 6.30...10.0 150 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 9
100...250 100...250 AF09-30-10-13 1SBL137001R1310
4 8.5 MS132-10 1SAM350000R1010 6.30...10.0 150 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 9
100...250 100...250 AF09-30-10-13 1SBL137001R1310
5.5 11.5 MS132-12 1SAM350000R1012 8.00...12.0 180 24...60 20...60 AF12Z-30-10-21 1SBL156001R2110 12
100...250 100...250 AF12-30-10-13 1SBL157001R1310
7.5 15.5 MS132-16 1SAM350000R1011 10.0...16.0 240 24...60 20...60 AF16Z-30-10-21 1SBL176001R2110 16
100...250 100...250 AF16-30-10-13 1SBL177001R1310
11 22 MS132-25 1SAM350000R1014 20.0...25.0 375 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 25 BEA38-4 1SBN082306T2000
100...250 100...250 AF26-30-00-13 1SBL237001R1300 + BER38-4 1SBN082311R1000
15 29 MS132-32 1SAM350000R1015 25.0...32.0 480 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 32 + VEM4 1SBN030111R1000
100...250 100...250 AF30-30-00-13 1SBL277001R1300 + 2x CA4-10 1SBN010110R1010
18.5 35 MS165-42 1SAM451000R1015 30.0…42.0 630 24…60 20…60 AF40-30-00-11 1SBL347001R1100 40 BEA65-4 1SBN083406R1000
100...250 100...250 AF40-30-00-13 1SBL347001R1300 + 2x BPR65-4 (4) 1SBN113405R1000
22 41 MS165-54 1SAM451000R1016 40.0…54.0 810 24…60 20…60 AF52-30-00-11 1SBL367001R1100 53 + BER65-4 1SBN083411R1000
100...250 100...250 AF52-30-00-13 1SBL367001R1300 + VM96-4 1SBN033405T1000
30 55 MS165-65 1SAM451000R1017 52.0…65.0 975 24…60 20…60 AF65-30-00-11 1SBL387001R1100 65 + 2x CA4-10 1SBN010110R1010
+ 2x
1SBN010110R1001
CA4-01
100...250 100...250 AF65-30-00-13 1SBL387001R1300
37 66 MS495-75 1SAM550000R1008 57.0…75.0 975 24…60 20…60 AF80-30-00-11 1SBL397001R1100 75 BER96-4 1SBN083911R1000
100…250 100…250 AF80-30-00-13 1SBL397001R1300 + VM96-4 1SBN033405T1000
45 80 MS495-90 1SAM550000R1009 70.0…90.0 1170 24…60 20…60 AF96-30-00-11 1SBL407001R1100 90 + 2x CA4-10 1SBN010110R1010
100…250 100…250 AF96-30-00-13 1SBL407001R1300 + 2x CA4-01 1SBN010110R1001
(1) MS116 manual motor starter can be selected according to the current setting range indicated on the coordination line, up to:
- 15 kW, 400 V - AC-3 at 16 kA
- 4 kW, 400 V - AC-3 at 50 kA.
(2) For other control voltages, see "Voltage code table". 1SBC101915S0201 - Rev. C
(3) AF38 3-pole contactor can be selected for coordination type 1, 16 kA and 50 kA, 18.5 kW, 400 V - AC-3 (BEA65-4 available for AF40 ... AF65 only).
(4) For direct mounting on 2 rails 35 mm of MS165 with AF40 ... AF65: BEA65-4 must be associated with BPR65-4 fixed on each contactor base. Applicable for MS165 manufactured after
week 31, 2016 (date code > 16214).
5/14 | ABB
