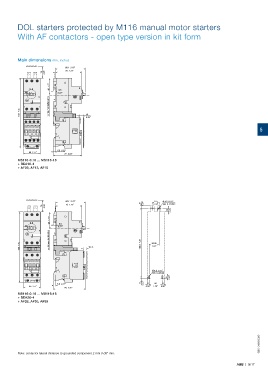

DOL starters protected by M116 manual motor starters

With AF contactors - open type version in kit form

Main dimensions mm, inches
80.1 3.15" 17.5 Ø 4.5 0.18"
75 2.95" 70 2.76" 6 0.24" 0.69" M4 8-32UNC
10 0.39"
45 1.77"
5.5
0.22"
35 mm EN/IEC 60715

188 7.40" 10 186.8 7.35" 26.25
1.03"
0.39"

5

Ø 4.2 0.17"
M4 8-32UNC
5 0.20"
5.5 0.22" 5 0.20" 5 35 5
45 1.77" 0.20" 1.38" 0.20"
77 3.03"
MS116-0.16 ... MS116-16
+ BEA16-4
+ AF09, AF12, AF16

80.1 3.15" 81.1 3.19" 17.5 Ø 4.5 0.18" 17.5 Ø 4.5 0.18"
6 0.24" 72.2 2.84" 0.69" M4 8-32UNC 6 0.24" 0.69" M4 8-32UNC
75 2.95" 70 2.76" 75 2.95"
10 0.39" 10 0.39"
45 1.77" 45 1.77" 5.5
5.5
0.22" 0.22"
35 mm EN/IEC 60715 35 mm EN/IEC 60715

188 7.40" 192 7.56" 10 0.39" 186.8 7.35" 26.25 10 0.39" 186.8 7.35" 26.25
1.03"
1.03"

Ø 4.2 0.17" Ø 4.2 0.17"
M4 8-32UNC M4 8-32UNC
5 0.20" 5 0.20"
5.5 0.22" 0.20" 5 5 35 5 5 0.20" 5 35 5
5.5 0.22"
45 1.77" 45 1.77" 0.20" 1.38" 0.20" 0.20" 1.38" 0.20"
86 3.39" 86 3.39"
MS116-0.16 ... MS116-16
+ BEA26-4
+ AF26, AF30, AF38

1SBC101919S0201

Note: contactor lateral distance to grounded component 2 mm 0.08" min.

ABB | 5/17
