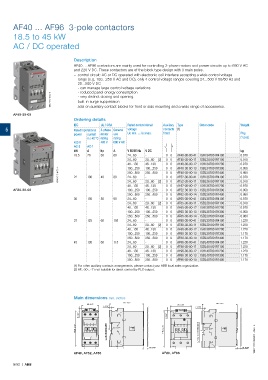

Page 292 - Motor_protection_and_control_Manual_motor_starters_ contactors

AF40 ... AF96 3-pole contactors

18.5 to 45 kW
AC / DC operated

Description
AF40 ... AF96 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC
and 220 V DC. These contactors are of the block type design with 3 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...500 V 50/60 Hz and
20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
1SBC101014V0014 – built-in surge suppression
- very distinct closing and opening.
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
AF40-30-00
Ordering details
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
5 Rated operational 3-phase General voltage contacts (1)
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
18.5 70 30 60 24...60 - 0 0 AF40-30-00-41 1SBL347001R4100 0.970
24...60 20...60 (2) 0 0 AF40-30-00-11 1SBL347001R1100 0.970
48...130 48...130 0 0 AF40-30-00-12 1SBL347001R1200 0.970
100...250
100...250
AF40-30-00-13 1SBL347001R1300
0.950
0 0
1SBC101016V0014 22 100 40 80 250...500 250...500 0 0 AF40-30-00-14 1SBL347001R1400 0.950
AF52-30-00-41 1SBL367001R4100
0.970
0 0
-
24...60
24...60
0 0
48...130 20...60 (2) 0 0 AF52-30-00-11 1SBL367001R1100 0.970
48...130
AF52-30-00-12 1SBL367001R1200
0.970
AF80-30-00 100...250 100...250 0 0 AF52-30-00-13 1SBL367001R1300 0.950
250...500 250...500 0 0 AF52-30-00-14 1SBL367001R1400 0.950
30 105 50 90 24...60 - 0 0 AF65-30-00-41 1SBL387001R4100 0.970
24...60 20...60 (2) 0 0 AF65-30-00-11 1SBL387001R1100 0.970
48...130 48...130 0 0 AF65-30-00-12 1SBL387001R1200 0.970
100...250 100...250 0 0 AF65-30-00-13 1SBL387001R1300 0.950
250...500 250...500 0 0 AF65-30-00-14 1SBL387001R1400 0.950
37 125 60 105 24...60 - 0 0 AF80-30-00-41 1SBL397001R4100 1.220
24...60 20...60 (2) 0 0 AF80-30-00-11 1SBL397001R1100 1.220
48...130 48...130 0 0 AF80-30-00-12 1SBL397001R1200 1.220
100...250 100...250 0 0 AF80-30-00-13 1SBL397001R1300 1.170
250...500 250...500 0 0 AF80-30-00-14 1SBL397001R1400 1.170
45 130 60 115 24...60 - 0 0 AF96-30-00-41 1SBL407001R4100 1.220
24...60 20...60 (2) 0 0 AF96-30-00-11 1SBL407001R1100 1.220
48...130 48...130 0 0 AF96-30-00-12 1SBL407001R1200 1.220
100...250 100...250 0 0 AF96-30-00-13 1SBL407001R1300 1.170
250...500 250...500 0 0 AF96-30-00-14 1SBL407001R1400 1.170
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
(2) AF..-30-..-11 not suitable for direct control by PLC-output.
Main dimensions mm, inches
111 111 4.37"4.37" 116 4.57" 116 4.57"
55 2.17"
55 2.17" 70 2.76" 70 2.76"
7 0.28"
7 0.28" 7 0.28" 7 0.28"
6 0.24" 6 0.24" 6 0.24" 6 0.24"
119.5 4.70" 119.5 4.70" 35 mm EN/IEC 60715 35 mm EN/IEC 60715 5 5.5 0.22".5 5 0.22 119.5 4.70" 119.5 4.70" 35 x 15 mm EN/IEC 60715 5.5 35 x 15 mm EN/IEC 60715 5.5 0.22" 0.22"
5.5 0.22".5 0.22""
5.5
5.5 0.22" 0.22"

10 0.39" 10 0.39" 10 0.39" 1SBC101740S0201 - Rev. A
10 0.39"
AF40, AF52, AF65 AF80, AF96
5/92 | ABB
