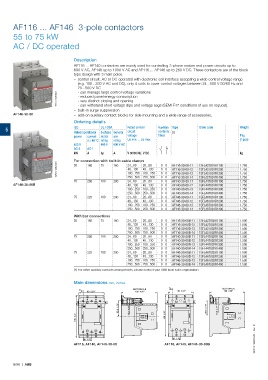

AF116 ... AF146 3-pole contactors

55 to 75 kW
AC / DC operated

Description
AF116 ... AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to
690 V AC, AF146 up to 1000 V AC and AF116 ... AF146 up to 260 V DC. These contactors are of the block
type design with 3 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
(e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V 50/60 Hz and
20...500 V DC
- can manage large control voltage variations
1SFC101005V0001 - reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
– built-in surge suppression
AF146-30-00 – add-on auxiliary contact blocks for side mounting and a wide range of accessories.
Ordering details
5 IEC UL / CSA Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General circuit contacts (1)
power current motor use voltage fitted Pkg
θ ≤ 40 °C rating rating Uc min. ... Uc max. (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
For connection with built-in cable clamps 20...60 0 0
1SFC101006V0001 160 160 48...130 48...130 0 0 AF116-30-00-11 1SFL427001R1100 1.750
24...60
75
55
1SFL427001R1200
1.750
AF116-30-00-12
0 0
100...250
100...250
AF116-30-00-13
1.750
1SFL427001R1300
75 200 100 200 250...500 250...500 0 0 AF116-30-00-14 1SFL427001R1400 1.750
24...60
1.750
1SFL447001R1100
0 0
AF140-30-00-11
20...60
AF146-30-00B 48...130 48...130 0 0 AF140-30-00-12 1SFL447001R1200 1.750
100...250 100...250 0 0 AF140-30-00-13 1SFL447001R1300 1.750
250...500 250...500 0 0 AF140-30-00-14 1SFL447001R1400 1.750
75 225 100 200 24...60 20...60 0 0 AF146-30-00-11 1SFL467001R1100 1.750
48...130 48...130 0 0 AF146-30-00-12 1SFL467001R1200 1.750
100...250 100...250 0 0 AF146-30-00-13 1SFL467001R1300 1.750
250...500 250...500 0 0 AF146-30-00-14 1SFL467001R1400 1.750
With bar connections
55 160 75 160 24...60 20...60 0 0 AF116-30-00B-11 1SFL427002R1100 1.500
48...130 48...130 0 0 AF116-30-00B-12 1SFL427002R1200 1.500
100...250 100...250 0 0 AF116-30-00B-13 1SFL427002R1300 1.500
250...500 250...500 0 0 AF116-30-00B-14 1SFL427002R1400 1.500
75 200 100 200 24...60 20...60 0 0 AF140-30-00B-11 1SFL447002R1100 1.500
48...130 48...130 0 0 AF140-30-00B-12 1SFL447002R1200 1.500
100...250 100...250 0 0 AF140-30-00B-13 1SFL447002R1300 1.500
250...500 250...500 0 0 AF140-30-00B-14 1SFL447002R1400 1.500
75 225 100 200 24...60 20...60 0 0 AF146-30-00B-11 1SFL467002R1100 1.500
48...130 48...130 0 0 AF146-30-00B-12 1SFL467002R1200 1.500
100...250 100...250 0 0 AF146-30-00B-13 1SFL467002R1300 1.500
250...500 250...500 0 0 AF146-30-00B-14 1SFL467002R1400 1.500
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
Main dimensions mm, inches
E SECTION E-E
E SECTION E-E
90 3.54" 126 4.96" 90 3.54" 126 4.96"
D D D D
55.5 0.22" 19.5 4.96" 55.5 2.18" 19.5 0.77"
150 5.91" 150 5.91"
1SFC101088C0201 - Rev. D
30 1.18" 30 1.18"
AF116, AF140, AF146-30-00 AF116, AF140, AF146-30-00B
