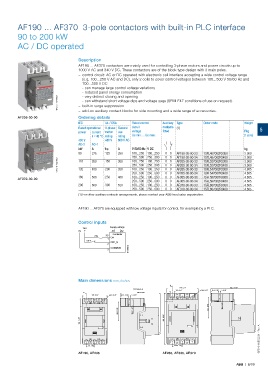

AF190 ... AF370 3-pole contactors with built-in PLC interface

90 to 200 kW
AC / DC operated

Description
AF190 ... AF370 contactors are mainly used for controlling 3-phase motors and power circuits up to
1000 V AC and 340 V DC. These contactors are of the block type design with 3 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
(e.g. 100...250 V AC and DC), only 2 coils to cover control voltages between 100...500 V 50/60 Hz and
100...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening
1SFC101167V0001 – built-in surge suppression
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
– add-on auxiliary contact blocks for side mounting and a wide range of accessories.
AF205-30-00 Ordering details
IEC UL / CSA Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General circuit contacts (1) 5
power current motor use voltage fitted Pkg
θ ≤ 40 °C rating rating Uc min. ... Uc max. (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
90 275 125 250 100...250 100...250 0 0 AF190-30-00-33 1SFL487002R3300 3.000
250...500
1SFL487002R3400
250...500
3.000
AF190-30-00-34
0 0
1SFC101132V0001 110 350 150 300 100...250 100...250 0 0 AF205-30-00-33 1SFL527002R3300 3.000
0 0
250...500
1SFL527002R3400
3.000
250...500
AF205-30-00-34
AF265-30-00-33
100...250
0 0
100...250
1SFL547002R3300
4.605
132
400
350
200
250...500 250...500 0 0 AF265-30-00-34 1SFL547002R3400 4.605
160 500 250 400 100...250 100...250 0 0 AF305-30-00-33 1SFL587002R3300 4.605
AF370-30-00
250...500 250...500 0 0 AF305-30-00-34 1SFL587002R3400 4.605
200 600 300 520 100...250 100...250 0 0 AF370-30-00-33 1SFL607002R3300 4.605
250...500 250...500 0 0 AF370-30-00-34 1SFL607002R3400 4.605
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
AF190 ... AF370 are equipped with low voltage inputs for control, for example by a PLC.
Control inputs

Main dimensions mm, inches
A
140 5.51" 195.5 7.70"
SECTION B-B
19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
B 169.5 6.67"
105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20"
83.5 3.29" 29.5 1.16" 94.7 3.73" 33.4 1.31"

196 7.72" 225 8.86"
1SFC101165C0201 - Rev. A

35 1.38" 43.75 1.72" 1SFC101165C0201
AF190, AF205 AF265, AF305, AF370

ABB | 5/99
