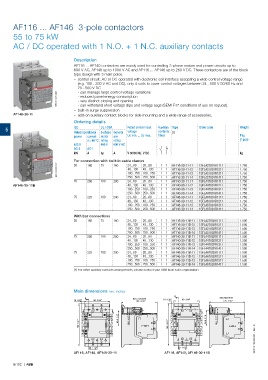

AF116 ... AF146 3-pole contactors

55 to 75 kW
AC / DC operated with 1 N.O. + 1 N.C. auxiliary contacts

Description
AF116 ... AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to
690 V AC, AF146 up to 1000 V AC and AF116 ... AF146 up to 260 V DC. These contactors are of the block
type design with 3 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
(e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V 50/60 Hz and
20...500 V DC
- can manage large control voltage variations
1SFC101001V0001 - reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
– built-in surge suppression
AF146-30-11 – add-on auxiliary contact blocks for side mounting and a wide range of accessories.
Ordering details
5 IEC UL / CSA Rated control ircuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts (1)
power current motor use Uc min. ... Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
For connection with built-in cable clamps 20...60 1 1 AF116-30-11-11 1SFL427001R1111 1.750
1SFC101008V0001 48...130 48...130 1 1 AF116-30-11-12 1SFL427001R1211 1.750
24...60
75
55
160
160
100...250
AF116-30-11-13
1.750
1 1
1SFL427001R1311
100...250
24...60
75 200 100 200 250...500 250...500 1 1 AF116-30-11-14 1SFL427001R1411 1.750
20...60
1.750
AF140-30-11-11
1 1
1SFL447001R1111
AF146-30-11B 48...130 48...130 1 1 AF140-30-11-12 1SFL447001R1211 1.750
100...250 100...250 1 1 AF140-30-11-13 1SFL447001R1311 1.750
250...500 250...500 1 1 AF140-30-11-14 1SFL447001R1411 1.750
75 225 100 200 24...60 20...60 1 1 AF146-30-11-11 1SFL467001R1111 1.750
48...130 48...130 1 1 AF146-30-11-12 1SFL467001R1211 1.750
100...250 100...250 1 1 AF146-30-11-13 1SFL467001R1311 1.750
250...500 250...500 1 1 AF146-30-11-14 1SFL467001R1411 1.750
With bar connections
55 160 75 160 24...60 20...60 1 1 AF116-30-11B-11 1SFL427002R1111 1.500
48...130 48...130 1 1 AF116-30-11B-12 1SFL427002R1211 1.500
100...250 100...250 1 1 AF116-30-11B-13 1SFL427002R1311 1.500
250...500 250...500 1 1 AF116-30-11B-14 1SFL427002R1411 1.500
75 200 100 200 24...60 20...60 1 1 AF140-30-11B-11 1SFL447002R1111 1.500
48...130 48...130 1 1 AF140-30-11B-12 1SFL447002R1211 1.500
100...250 100...250 1 1 AF140-30-11B-13 1SFL447002R1311 1.500
250...500 250...500 1 1 AF140-30-11B-14 1SFL447002R1411 1.500
75 225 100 200 24...60 20...60 1 1 AF146-30-11B-11 1SFL467002R1111 1.500
48...130 48...130 1 1 AF146-30-11B-12 1SFL467002R1211 1.500
100...250 100...250 1 1 AF146-30-11B-13 1SFL467002R1311 1.500
250...500 250...500 1 1 AF146-30-11B-14 1SFL467002R1411 1.500
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
Main dimensions mm, inches
E
E SECTION E-E SECTION E-E
10 0.39" 90 3.54" 126 4.96" 10 0.39" 90 3.54" 126 4.96"
D D D D
150 5.91" 55.5 0.22" 19.5 4.96" 150 5.91" 55.5 2.18" 19.5 0.77"
1SFC101090C0201 - Rev. D

30 1.18" 30 1.18"
AF116, AF140, AF146-30-11 AF116, AF140, AF146-30-11B
