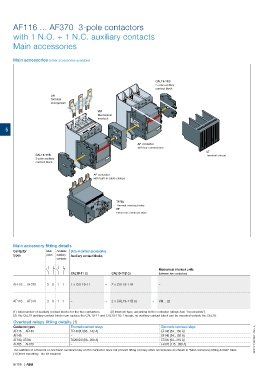

AF116 ... AF370 3-pole contactors

with 1 N.O. + 1 N.C. auxiliary contacts
Main accessories

Main accessories (other accessories available)

CAL19-11B
2-pole auxiliary
contact block
LW
Terminal
enlargement
VM
Mechanical
interlock

5

AF contactor
with bar connections
LT
CAL19-11B Terminal shroud
2-pole auxiliary
contact block

AF contactor
with built-in cable clamps

TF/TA
Thermal overload relay
EF
Electronic overload relay

Main accessory fitting details
Contactor Main Available Side-mounted accessories
types poles auxiliary Auxiliary contact blocks
contacts

Mechanical interlock units
CAL19-11 (3) CAL19-11B (3) (between two contactors)

AF116 ... AF370 3 0 1 1 1 x CAL19-11 + 2 x CAL19-11B –

AF116 ... AF370 3 0 1 1 – + 2 x CAL19-11B (1) + VM... (2)

(1) Total number of auxiliary contact blocks for the two contactors. (2) Interlock type, according to the contactor ratings (see "Accessories").
(3) The CEL19 auxiliary contact blocks can replace the CAL19-11 and CAL19-11B. Though, no auxiliary contact block can be mounted outside the CEL19.
Overload relays fitting details (1)
Contactor types Thermal overload relays Electronic overload relays
AF116 ... AF140 TF140DU (66...142 A) EF146 (54...150 A)
AF146 – EF146 (54...150 A)
AF190, AF205 TA200DU (66...200 A) EF205 (63...210 A) 1SFC101132C0201- Rev. A
AF265 ... AF370 – EF370 (115...380 A)
The addition of a thermal or electronic overload relay on the contactor does not prevent fitting of many other accessories as shown in "Main accessory fitting details" table.
(1) Direct mounting - No kit required.
