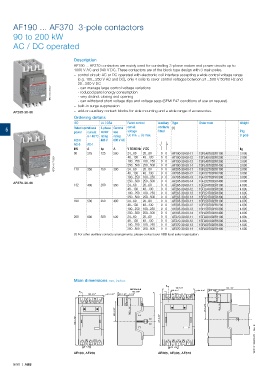

AF190 ... AF370 3-pole contactors

90 to 200 kW
AC / DC operated

Description
AF190 ... AF370 contactors are mainly used for controlling 3-phase motors and power circuits up to
1000 V AC and 340 V DC. These contactors are of the block type design with 3 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
(e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V 50/60 Hz and
20...500 V DC
1SFC101012V0001 - reduced panel energy consumption
- can manage large control voltage variations
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
– built-in surge suppression
AF205-30-00 – add-on auxiliary contact blocks for side mounting and a wide range of accessories.
Ordering details
IEC UL / CSA Rated control Auxiliary Type Order code Weight
5 Rated operational 3-phase General circuit contacts (1)
power current motor use voltage fitted Pkg
θ ≤ 40 °C rating rating Uc min. ... Uc max. (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
90 275 125 250 24...60 20...60 0 0 AF190-30-00-11 1SFL487002R1100 3.000
48...130
1SFL487002R1200
3.000
0 0
AF190-30-00-12
48...130
1SFC101017V0001 100...250 100...250 0 0 AF190-30-00-13 1SFL487002R1300 3.000
250...500
AF190-30-00-14
1SFL487002R1400
3.000
250...500
0 0
300
24...60
150
350
110
0 0
AF205-30-00-12
48...130
48...130 20...60 0 0 AF205-30-00-11 1SFL527002R1100 3.000
3.000
1SFL527002R1200
100...250 100...250 0 0 AF205-30-00-13 1SFL527002R1300 3.000
250...500 250...500 0 0 AF205-30-00-14 1SFL527002R1400 3.000
AF370-30-00
132 400 200 350 24...60 20...60 0 0 AF265-30-00-11 1SFL547002R1100 4.605
48...130 48...130 0 0 AF265-30-00-12 1SFL547002R1200 4.605
100...250 100...250 0 0 AF265-30-00-13 1SFL547002R1300 4.605
250...500 250...500 0 0 AF265-30-00-14 1SFL547002R1400 4.605
160 500 250 400 24...60 20...60 0 0 AF305-30-00-11 1SFL587002R1100 4.605
48...130 48...130 0 0 AF305-30-00-12 1SFL587002R1200 4.605
100...250 100...250 0 0 AF305-30-00-13 1SFL587002R1300 4.605
250...500 250...500 0 0 AF305-30-00-14 1SFL587002R1400 4.605
200 600 300 520 24...60 20...60 0 0 AF370-30-00-11 1SFL607002R1100 4.605
48...130 48...130 0 0 AF370-30-00-12 1SFL607002R1200 4.605
100...250 100...250 0 0 AF370-30-00-13 1SFL607002R1300 4.605
250...500 250...500 0 0 AF370-30-00-14 1SFL607002R1400 4.605
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
Main dimensions mm, inches
A
140 5.51" 180 7.09"
SECTION B-B 19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
B 152 5.98"
105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20"
83.5 3.29" 29.5 1.16" 94.7 3.73" 33.4 1.31"
196 7.72" 225 8.86"
1SFC101089C0201 - Rev. E

35 1.38" 43.75 1.72"
AF190, AF205 AF265, AF305, AF370

5/98 | ABB
