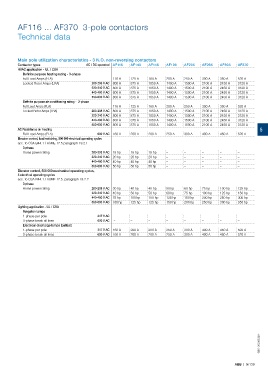

AF116 ... AF370 3-pole contactors

Technical data

Main pole utilization characteristics - 3 N.O. non-reversing contactors
Contactor types AC / DC operated AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370
HVAC application - UL / CSA
Definite purpose heating rating - 3-phase
Full Load Amps (FLA) 116 A 125 A 160 A 200 A 250 A 300 A 350 A 520 A
Locked Rotor Amps (LRA) 200-208 V AC 800 A 875 A 1050 A 1400 A 1500 A 2100 A 2450 A 3120 A
220-240 V AC 800 A 875 A 1050 A 1400 A 1500 A 2100 A 2450 A 3120 A
440-480 V AC 800 A 875 A 1050 A 1400 A 1500 A 2100 A 2450 A 3120 A
550-600 V AC 800 A 875 A 1050 A 1400 A 1500 A 2100 A 2450 A 3120 A
Definite purpose air conditioning rating - 3-phase
Full Load Amps (FLA) 116 A 125 A 160 A 200 A 250 A 300 A 350 A 520 A
Locked Rotor Amps (LRA) 200-208 V AC 800 A 875 A 1050 A 1400 A 1500 A 2100 A 2450 A 3120 A
220-240 V AC 800 A 875 A 1050 A 1400 A 1500 A 2100 A 2450 A 3120 A
440-480 V AC 800 A 875 A 1050 A 1400 A 1500 A 2100 A 2450 A 3120 A
550-600 V AC 800 A 875 A 1050 A 1400 A 1500 A 2100 A 2450 A 3120 A
AC Resistance air heating 5
Full Load Amps (FLA) 600 V AC 160 A 200 A 200 A 250 A 300 A 400 A 450 A 520 A
Elevator control, load switching, 500 000 electrical operating cycles
acc. to CSA B44.1 / ASME 17.5 paragraph 19.2.1
3-phase
Horse power rating 200-208 V AC 15 hp 15 hp 15 hp – – – – –
220-240 V AC 20 hp 20 hp 20 hp – – – – –
440-480 V AC 40 hp 40 hp 40 hp – – – – –
550-600 V AC 50 hp 50 hp 50 hp – – – – –
Elevator control, 500 000 mechanical operating cycles,
5 electrical operating cycles
acc. to CSA B44.1 / ASME 17.5. paragraph 19.2.2
3-phase
Horse power rating 200-208 V AC 30 hp 40 hp 40 hp 50 hp 60 hp 75 hp 100 hp 125 hp
220-240 V AC 40 hp 50 hp 50 hp 60 hp 75 hp 100 hp 125 hp 150 hp
440-480 V AC 75 hp 100 hp 100 hp 125 hp 150 hp 200 hp 250 hp 300 hp
550-600 V AC 100 hp 125 hp 125 hp 150 hp 200 hp 250 hp 300 hp 350 hp
Lighting application - UL / CSA
Tungsten lamps
1-phase per pole 347 V AC – – – – – – – –
3-phase break all lines 600 V AC – – – – – – – –
Electrical discharge lamps (ballast)
1-phase per pole 347 V AC 160 A 200 A 200 A 250 A 300 A 400 A 450 A 520 A
3-phase break all lines 600 V AC 160 A 200 A 200 A 250 A 300 A 400 A 450 A 520 A

1SBC100069S0201

ABB | 5/139
