AF580 and AF750 3-pole contactors

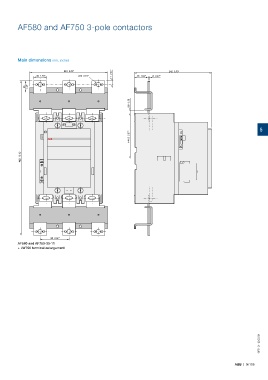

Main dimensions mm, inches
245 9.65" 242 9.53"
40 1.57" ΓΈ13 0.51" 11 0.43" 43 1.69" 6 0.24"
1.38"
35
9.6 0.38"
5
141.5 5.57"
483 19.02"
92 3.62"
AF580 and AF750-30-11
+ LW750 terminal enlargement
1SFC101122C0201
