AF1250 3-pole contactors

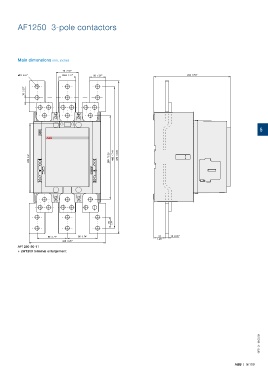

Main dimensions mm, inches
72 2.83"
ø13 0.51" 53.8 2.12" 50 1.97" 242 9.53"
15 0.59"
5
249 9.8" 263 10.35" 443 17.44" 479 18.86"
34 1.34"
95 3.74" 95 3.74" 37 10 0.39" 1SFC101132F0001
1SFC101131F0001
240 9.45" 1.46"
AF1250-30-11
+ LW1250 terminal enlargement
1SFC101136C0201
