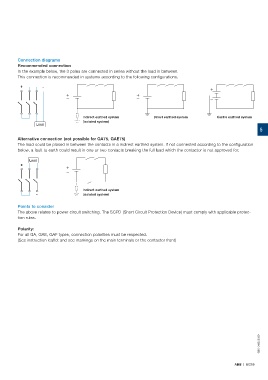

Connection diagrams
Recommended connection
In the example below, the 3 poles are connected in series without the load in between.
This connection is recommended in systems according to the following configurations.
+ -

Indirect earthed system Direct earthed system Centre earthed system
(isolated system)
Load
5

Alternative connection (not possible for GA75, GAE75)
The load could be placed in between the contacts in a indirect earthed system. If not connected according to the configuration
below, a fault to earth could result in one or two contacts breaking the full load which the contactor is not approved for.

Load
+

Indirect earthed system
- (isolated system)

Points to consider
The above relates to power circuit switching. The SCPD (Short Circuit Protection Device) must comply with applicable protec-
tion rules.

Polarity:
For all GA, GAE, GAF types, connection polarities must be respected.
(See instruction leaflet and see markings on the main terminals or the contactor front)

1SBC101980S0201

ABB | 5/255
