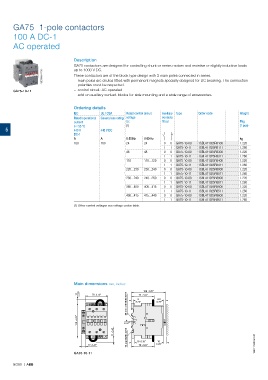

Page 460 - Motor_protection_and_control_Manual_motor_starters_ contactors

GA75 1-pole contactors

100 A DC-1
AC operated

Description
GA75 contactors are designed for controlling shunt or series motors and resistive or slightly inductive loads
up to 1000 V DC.
1SBC586544F0301 These contactors are of the block type design with 3 main poles connected in series.
– main poles arc chutes fitted with permanent magnets specially designed for DC breaking. The connection
polarities must be respected.
GA75-10-11 – control circuit: AC operated
– add-on auxiliary contact blocks for side mounting and a wide range of accessories.

Ordering details
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use rating voltage contacts
current Uc fitted Pkg
θ ≤ 55 °C (1) (1 pce)
5 440 V 440 V DC
DC-1
A A V 50 Hz V 60 Hz kg
100 100 24 24 0 0 GA75-10-00 1SBL411025R8100 1.220
1 1 GA75-10-11 1SBL411025R8111 1.260
48 48 0 0 GA75-10-00 1SBL411025R8300 1.220
1 1 GA75-10-11 1SBL411025R8311 1.260
110 110…120 0 0 GA75-10-00 1SBL411025R8400 1.220
1 1 GA75-10-11 1SBL411025R8411 1.260
220…230 230…240 0 0 GA75-10-00 1SBL411025R8000 1.220
1 1 GA75-10-11 1SBL411025R8011 1.260
230…240 240…260 0 0 GA75-10-00 1SBL411025R8800 1.220
1 1 GA75-10-11 1SBL411025R8811 1.260
380…400 400…415 0 0 GA75-10-00 1SBL411025R8500 1.220
1 1 GA75-10-11 1SBL411025R8511 1.260
400…415 415…440 0 0 GA75-10-00 1SBL411025R8600 1.220
1 1 GA75-10-11 1SBL411025R8611 1.260
(1) Other control voltages see voltage codes table.

Main dimensions mm, inches
108 4.25"
35 mm x15 EN/IEC 60715 0.24" 0.26"
0.43" 70 2.76" 6 72 2.83" 6.5
11

110 4.33" 0.16"
4

11 0.43" 75 mm EN/IEC 60715

10
12 0.47" 10 0.39" 0.39" 1SBC101423S0201
72 2.83"
GA75-10-11

5/260 | ABB
