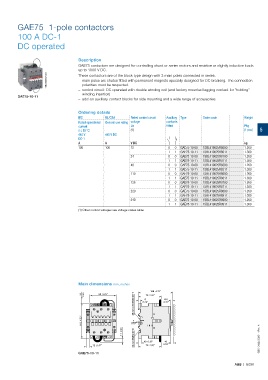

GAE75 1-pole contactors

100 A DC-1
DC operated

Description
GAE75 contactors are designed for controlling shunt or series motors and resistive or slightly inductive loads
up to 1000 V DC.
1SBC586554F0301 These contactors are of the block type design with 3 main poles connected in series.
– main poles arc chutes fitted with permanent magnets specially designed for DC breaking. The connection
polarities must be respected.
– control circuit: DC operated with double winding coil (and factory mounted lagging contact for "holding"
winding insertion)
GAE75-10-11
– add-on auxiliary contact blocks for side mounting and a wide range of accessories
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use rating voltage contacts
current Uc fitted Pkg
θ ≤ 55 °C (1) (1 pce) 5
440 V 440 V DC
DC-1
A A V DC kg
100 100 12 0 0 GAE75-10-00 1SBL419025R8000 1.260
1 1 GAE75-10-11 1SBL419025R8011 1.300
24 0 0 GAE75-10-00 1SBL419025R8100 1.260
1 1 GAE75-10-11 1SBL419025R8111 1.300
48 0 0 GAE75-10-00 1SBL419025R8300 1.260
1 1 GAE75-10-11 1SBL419025R8311 1.300
110 0 0 GAE75-10-00 1SBL419025R8600 1.260
1 1 GAE75-10-11 1SBL419025R8611 1.300
125 0 0 GAE75-10-00 1SBL419025R8700 1.260
1 1 GAE75-10-11 1SBL419025R8711 1.300
220 0 0 GAE75-10-00 1SBL419025R8800 1.260
1 1 GAE75-10-11 1SBL419025R8811 1.300
240 0 0 GAE75-10-00 1SBL419025R8900 1.260
1 1 GAE75-10-11 1SBL419025R8911 1.300
(1) Other control voltages see voltage codes table.

Main dimensions mm, inches
108 4.25"
35 mm x15 EN/IEC 60715 0.24" 0.26"
11 0.43" 82 3.23" 6 72 2.83" 6.5

110 4.33" 0.16"
4
11 0.43"

10
72 2.83"
12 0.47" 75 mm EN/IEC 60715 10 0.39" 0.39" 1SBC101424S0201 - Rev. A
GAE75-10-11

ABB | 5/261
