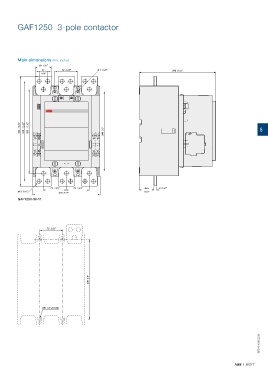

GAF1250 3-pole contactor
Main dimensions mm, inches
50 1.97"
27 72 2.83" ø 7 0.28" 242 9.53"
1.06"
344 13.54" 313 12.32" 263 10.35" 249 9.8" 5
1SFC101124F0001 1SFC101125F0001
72 2.83" 72 2.83" 46.5 8 0.31"
ø13 0.51" 18.3"
210 8.27"
GAF1250-30-11
72 2.83"
249 9.8"
1SFC101130F0001
M6 1/4-20 UNC
1SFC101183C0201
