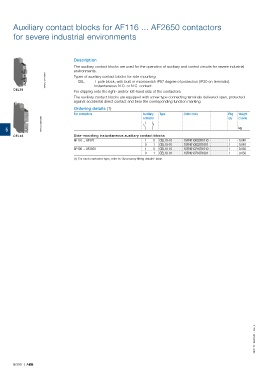

Auxiliary contact blocks for AF116 ... AF2650 contactors

for severe industrial environments

Description
The auxiliary contact blocks are used for the operation of auxiliary and control circuits for severe industrial
environments.
1SFC101214V0001 Types of auxiliary contact blocks for side mounting:
1-pole block, with built-in microswitch IP67 degree of protection (IP20 on terminals).
– CEL
CEL19 Instantaneous N.O. or N.C. contact.
For clipping onto the right- and/or left-hand side of the contactors.
The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected
against accidental direct contact and bear the corresponding function marking.
Ordering details (1)
For contactors Auxiliary Type Order code Pkg Weight
qty
contacts
(1 pce)
1SFC101083V0001
5 kg
CEL18 Side-mounting instantaneous auxiliary contact blocks
AF116 ... AF370 1 0 CEL19-10 1SFN010832R1010 1 0.040
0 1 CEL19-01 1SFN010832R1001 1 0.040
AF400 ... AF2650 1 0 CEL18-10 1SFN010716R1010 1 0.050
0 1 CEL18-01 1SFN010716R1001 1 0.050
(1) For each contactor type, refer to "Accessory fitting details" table.

1SFC101125C0201 - Rev. A

5/350 | ABB
