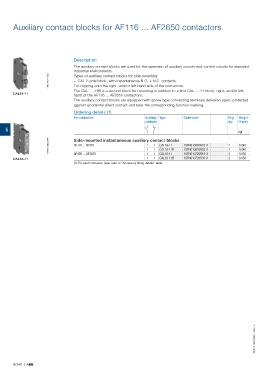

Auxiliary contact blocks for AF116 ... AF2650 contactors

Description
The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard
industrial environments.
1SFC101071V0001 Types of auxiliary contact blocks for side mounting:
– CAL 2-pole block, with instantaneous N.O. + N.C. contacts.
For clipping onto the right- and/or left-hand side of the contactors.
The CAL ...-11B is a second block for mounting in addition to a first CAL ...-11 block, right- and/or left-
CAL19-11 hand of the AF116 ... AF2650 contactors.
The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected
against accidental direct contact and bear the corresponding function marking.
Ordering details (1)
For contactors Auxiliary Type Order code Pkg Weight
contacts qty (1 pce)
5 kg

1SFC101082V0001 Side-mounted instantaneous auxiliary contact blocks 1SFN010820R1011 2 2 0.040
1
CAL19-11
1
AF116 ... AF370
CAL19-11B
1SFN010820R3311
0.040
1
1
1SFN010720R3311
0.050
CAL18-11B
CAL18-11 AF400 ... AF2650 1 1 1 1 CAL18-11 1SFN010720R1011 2 2 0.050
(1) For each contactor type, refer to "Accessory fitting details" table.

1SFC101097C0201 - Rev. A

5/348 | ABB
