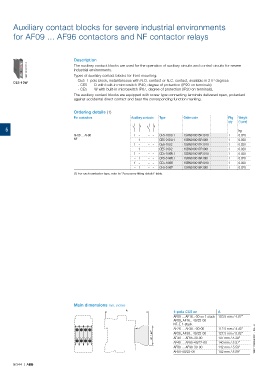

P. 544

Auxiliary contact blocks for severe industrial environments

       for AF09 ... AF96 contactors and NF contactor relays





                                  Description
             1SBC101030V0014      The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for severe
                                  industrial environments.
                                  Types of auxiliary contact blocks for front mounting:
       CE5-10W                       – CE5  1-pole block, instantaneous with N.O. contact or N.C. contact, available in 2 IP degrees
                                      - CE5   D with built-in microswitch IP40, degree of protection (IP20 on terminals)
                                      - CE5   W with built-in microswitch IP67, degree of protection (IP20 on terminals).
                                  The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected-
                                  against accidental direct contact and bear the corresponding function marking.

                                  Ordering details (1)
                                  For contactors           Auxiliary contacts  Type   Order code      Pkg   Weight
                                                                                                      qty  (1 pce)
    5                                                                                                      kg
                                  AF09 ... AF96              1 –   – –  CE5-10D0.1  1SBN010015R1010   1    0.020
                                  NF                         – 1   – –  CE5-01D0.1  1SBN010015R1001   1    0.020
                                                             1 –   – –  CE5-10D2   1SBN010017R1010    1    0.020
                                                             – 1   – –  CE5-01D2   1SBN010017R1001    1    0.020
                                                             1 –   – –  CE5-10W0.1  1SBN010016R1010   1    0.020
                                                             – 1   – –  CE5-01W0.1  1SBN010016R1001   1    0.020
                                                             1 –   – –  CE5-10W2   1SBN010018R1010    1    0.020
                                                             – 1   – –  CE5-01W2   1SBN010018R1001    1    0.020
                                  (1) For each contactor type, refer to "Accessory fitting details" table.


































                                  Main dimensions mm, inches
                                                         A
                                                                              1-pole CE5 on       A
                                                                              AF09 ... AF16..-30-xx 1 stack 103.5 mm / 4.07"
                                                                              AF09, AF16..-40/22-00
                                                                              NF..E 1-stack
                                                                              AF26 ... AF38..-30-00  112.5 mm / 4.43"
                                                                     47  1.85"  AF26, AF38..-40/22-00  127.5 mm / 5.02"
                                                                                                  137 mm / 5.39"
                                                                              AF40 ... AF65-30-00
                                                                              AF40 ... AF65-40/22-00  140 mm / 5.51"  1SBC101905S0201 - Rev. A
                                                                              AF80 ... AF96-30-00  142 mm / 5.59"
                                                                              AF80-40/22-00       142 mm / 5.59"

       5/344  |  ABB
