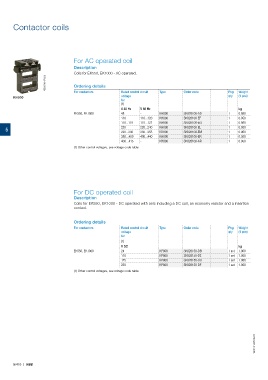

Contactor coils

For AC operated coil
Description
Coils for EK550, EK1000 - AC operated.
1SBC273813F0302 Ordering details

For contactors Rated control circuit Type Order code Pkg Weight
voltage qty (1 pce)
KH800
Uc
(1)
V 50 Hz V 60 Hz kg
EK550, EK1000 48 - KH800 SK828100-AD 1 0.950
110 110...120 KH800 SK828100-EF 1 0.950
110...115 115...127 KH800 SK828100-EG 1 0.950
5 220 220...240 KH800 SK828100-EL 1 1 0.950
220...230
230...255
SK828100-EM
0.950
KH800
380…400 400...440 KH800 SK828100-ER 1 0.950
400…415 - KH800 SK828100-AR 1 0.950
(1) Other control voltages, see voltage code table.

For DC operated coil
Description
Coils for EK550, EK1000 - DC operated with sets including a DC coil, an economy resistor and a insertion
contact.

Ordering details
For contactors Rated control circuit Type Order code Pkg Weight
voltage qty (1 pce)
Uc
(1)
V DC kg
EK550, EK1000 24 KP800 SK828150-DB 1 set 1.060
110 KP800 SK828150-DE 1 set 1.060
125 KP800 SK828150-DU 1 set 1.060
220 KP800 SK828150-DF 1 set 1.060
(1) Other control voltages, see voltage code table.

1SFC101227C0201

5/416 | ABB
