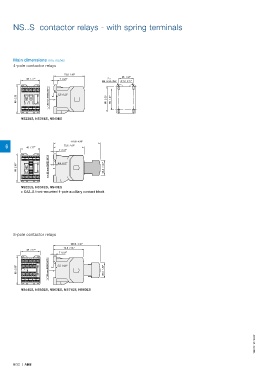

NS..S contactor relays - with spring terminals

Main dimensions mm, inches
4-pole contactor relays
72.5 2.85"
35 1.38"
45 1.77" 7 0.28" 2 x
M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 60 2.36" 50 1.97"

NS22ES, NS31ES, NS40ES

110.8 4.36"
6 45 1.77" 72.5 2.85" 2 x 35 1.38"
7 0.28" M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 35.4 1.39" 60 2.36" 50 1.97"

NS22ES, NS31ES, NS40ES
+ CA3..S front-mounted 1-pole auxiliary contact block

8-pole contactor relays

110.8 4.36"
72.5 2.85" 35 1.38"
45 1.77" 2 x
7 0.28" M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 35.4 1.39" 60 2.36" 50 1.97"

NS44ES, NS53ES, NS62ES, NS71ES, NS80ES

1SBC101417S0201

6/32 | ABB
