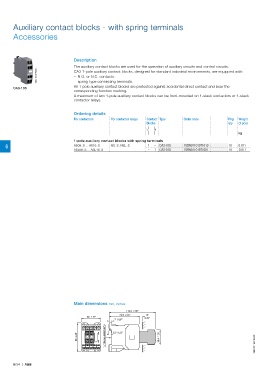

Auxiliary contact blocks - with spring terminals

Accessories

Description
The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits.
1SBC101037F0014 CA3 1-pole auxiliary contact blocks, designed for standard industrial environments, are equipped with:
– N.O. or N.C. contacts.
– spring-type connecting terminals.
All 1-pole auxiliary contact blocks are protected against accidental direct contact and bear the
CA3-10S
corresponding function marking.
A maximum of two 1-pole auxiliary contact blocks can be front-mounted on 1-stack contactors or 1-stack
contactor relays.

Ordering details
For contactors For contactor relays Contact Type Order code Pkg Weight
blocks qty (1 pce)
kg
1-pole auxiliary contact blocks with spring terminals
6 AS09..S ... AS16..S NS..S, NSL..S 1 – CA3-10S 1SBN011019T1010 10 0.011
ASL09..S ... ASL16..S – 1 CA3-01S 1SBN011019T1001 10 0.011

Main dimensions mm, inches
110.8 4.36"
72.5 2.85" 10
45 1.77" 0.39"
7 0.28"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 35.4 1.39"
1SBC101497S0201

6/34 | ABB
