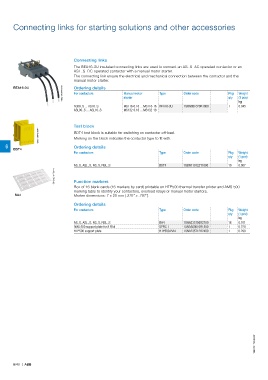

Page 664 - Motor_protection_and_control_Manual_motor_starters_ contactors

Connecting links for starting solutions and other accessories

Connecting links
The BEA16-3U insulated connecting links are used to connect an AS..S AC operated contactor or an
ASL..S DC operated contactor with a manual motor starter.
The connecting link ensure the electrical and mechanical connection between the contactor and the
manual motor starter.
1SBC101384F0010 For contactors Manual motor Type Order code Pkg Weight
BEA16-3U Ordering details
qty
(1 pce)
starter
0.045
AS09..S ... AS16..S MS116-0.16 ... MS116-16 BEA16-3U 1SBN081020R1000 1 kg
ASL09..S ... ASL16..S MS132-0.16 ... MS132-16

Test block
1SBC100043V0014 BDT4 test block is suitable for switching on contactor off-load.

Marking on the block indicates the contactor type to fit with.
6 Ordering details
BDT4
For contactors Type Order code Pkg Weight
qty (1 pce)
kg
AS..S, ASL..S, NS..S, NSL..S BDT4 1SBN110122T1000 10 0.007
1SNC160101F0014 Function markers

Box of 16 blank cards (16 markers by card) printable on HTP500 thermal transfer printer and AMS 500
marking table to identify your contactors, overload relays or manual motor starters.
BA4 Marker dimensions: 7 x 20 mm (.276" x .787").
Ordering details
For contactors Type Order code Pkg Weight
qty (1 pce)
kg
AS..S, ASL..S, NS..S, NSL..S BA4 1SNA235156R2700 16 0.011
AMS 500 support plate for 8 BA4 SPRC 1 1SNA360010R1500 1 0.220
HTP500 support plate HTP500-BA4 1SNA235712R2400 1 0.290

1SBC101782S0201

6/40 | ABB
