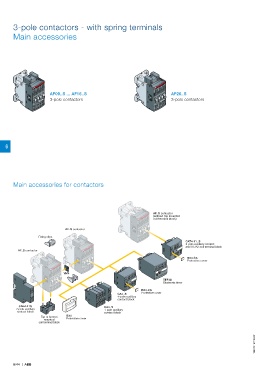

3-pole contactors - with spring terminals

Main accessories

AF09..S ... AF16..S AF26..S
3-pole contactors 3-pole contactors

6

Main accessories for contactors

AF..S contactor
(without top mounted
coil terminal block)
AF..S contactor
Fixing clips
CAT4-11..S
2-pole auxiliary contact
and A1/A2 coil terminal block
AF..S contactor
BX4-CA
Protective cover

VM4
TEF4S
Electronic timer
BX4-CA
CA4..S Protective cover
4-pole auxiliary
contact block
CAL4-11S CA4..S
2-pole auxiliary 1-pole auxiliary
contact block contact block
Top or bottom BX4
Protective cover
mounted
coil terminal block
1SBC101677S0201
