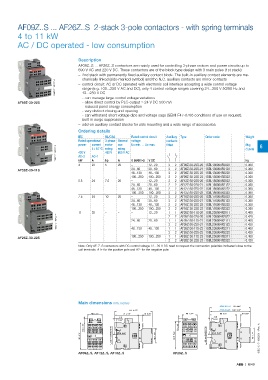

AF09Z..S ... AF26Z..S 2-stack 3-pole contactors - with spring terminals

4 to 11 kW
AC / DC operated - low consumption

Description
AF09Z..S ... AF26Z..S contactors are mainly used for controlling 3-phase motors and power circuits up to
690 V AC and 220 V DC. These contactors are of the block type design with 3 main poles (1st stack):
– 2nd stack with permanently fixed auxiliary contact block. The built-in auxiliary contact elements are me-
chanically linked (side-marked symbol) and the N.C. auxiliary contacts are mirror contacts
1SBC101101F0014 – control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...250 V 50/60 Hz and
12...250 V DC
- can manage large control voltage variations
AF09Z-30-22S - allow direct control by PLC-output ≥ 24 V DC 500 mA
- reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request).
– built-in surge suppression
– add-on auxiliary contact blocks for side mounting and a wide range of accessories.
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg 6
1SBC101102F0014 400 V AC-1 480 V 600 V AC (1 pce)
rating
θ≤ 40 °C rating
AC-3
–
4 kW A 22 hp A 20 V 50/60 Hz V DC 2 2 AF09Z-30-22S-20 1SBL136004R2022 kg
5
12...20
0.360
AF26Z-30-11S 24...60 20...60 2 2 AF09Z-30-22S-21 1SBL136004R2122 0.360
48...130 48...130 2 2 AF09Z-30-22S-22 1SBL136004R2222 0.360
100...250 100...250 2 2 AF09Z-30-22S-23 1SBL136004R2322 0.360
5.5 24 7.5 20 – 12...20 2 2 AF12Z-30-22S-20 1SBL156004R2022 0.360
24...60 20...60 2 2 AF12Z-30-22S-21 1SBL156004R2122 0.360
48...130 48...130 2 2 AF12Z-30-22S-22 1SBL156004R2222 0.360
100...250 100...250 2 2 AF12Z-30-22S-23 1SBL156004R2322 0.360
7.5 24 10 20 – 12...20 2 2 AF16Z-30-22S-20 1SBL176004R2022 0.360
24...60 20...60 2 2 AF16Z-30-22S-21 1SBL176004R2122 0.360
48...130 48...130 2 2 AF16Z-30-22S-22 1SBL176004R2222 0.360
100...250 100...250 2 2 AF16Z-30-22S-23 1SBL176004R2322 0.360
11 35 – – – 12...20 1 2 1 2 AF26Z-30-11S-20 1SBL236004R2011 0.400
1SBC101103F0014 24...60 20...60 1 2 1 2 AF26Z-30-11S-21 1SBL236004R2111 0.400
AF26Z-30-22S-20 1SBL236004R2022
0.420
0.420
AF26Z-30-22S-21 1SBL236004R2122
48...130
48...130
2 1 1 2 AF26Z-30-11S-22 1SBL236004R2211 0.400
AF26Z-30-22S-22 1SBL236004R2222
0.420
100...250 100...250 1 1 AF26Z-30-11S-23 1SBL236004R2311 0.400
AF26Z-30-22S
2 2 AF26Z-30-22S-23 1SBL236004R2322 0.420
Note: Only AF..Z..S contactors with DC control voltage 12...20 V DC need to respect the connection polarities indicated close to the
coil terminals: A1+ for the positive pole and A2- for the negative pole.

Main dimensions mm, inches
AF26-30-11S 113 4.45"
111 4.37" AF26-30-22S 120 4.72"
45 1.77" 71 2.79" 10 0.39" 45 1.77" 80 3.15" 10 0.39"
5.5 5.5
0.22" 0.22"
11.5 0.45" 10 0.39"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 45 1.77" 82.5 3.24" 35 mm EN/IEC 60715 5.5 0.22" 45 1.77" 1SBC101711S0201 - Rev. A

AF09Z..S, AF12Z..S, AF16Z..S AF26Z..S

ABB | 6/49
