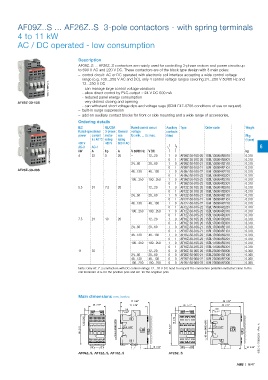

AF09Z..S ... AF26Z..S 3-pole contactors - with spring terminals

4 to 11 kW
AC / DC operated - low consumption

Description
AF09Z..S ... AF26Z..S contactors are mainly used for controlling 3-phase motors and power circuits up
to 690 V AC and 220 V DC. These contactors are of the block type design with 3 main poles:
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...250 V 50/60 Hz and
1SBC101099F0014 - can manage large control voltage variations
12...250 V DC
- allow direct control by PLC-output ≥ 24 V DC 500 mA

- very distinct closing and opening
AF09Z-30-10S - reduced panel energy consumption
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request).
– built-in surge suppression
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
θ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1 hp A V 50/60 Hz V DC kg 6
1SBC101100F0014 4 22 5 20 – 12...20 1 0 0 1 AF09Z-30-10S-20 1SBL136004R2010 0.310
kW
A
AF09Z-30-01S-20 1SBL136004R2001
0.310
24...60
20...60
0.310
0 1 0 1 AF09Z-30-10S-21 1SBL136004R2110 0.310
AF09Z-30-01S-21 1SBL136004R2101
AF26Z-30-00S 48...130 48...130 1 0 AF09Z-30-10S-22 1SBL136004R2210 0.310
0 1 AF09Z-30-01S-22 1SBL136004R2201 0.310
100...250 100...250 1 0 AF09Z-30-10S-23 1SBL136004R2310 0.310
0 1 AF09Z-30-01S-23 1SBL136004R2301 0.310
5.5 24 7.5 20 – 12...20 1 0 AF12Z-30-10S-20 1SBL156004R2010 0.310
0 1 AF12Z-30-01S-20 1SBL156004R2001 0.310
24...60 20...60 1 0 AF12Z-30-10S-21 1SBL156004R2110 0.310
0 1 AF12Z-30-01S-21 1SBL156004R2101 0.310
48...130 48...130 1 0 AF12Z-30-10S-22 1SBL156004R2210 0.310
0 1 AF12Z-30-01S-22 1SBL156004R2201 0.310
100...250 100...250 1 0 AF12Z-30-10S-23 1SBL156004R2310 0.310
0 1 AF12Z-30-01S-23 1SBL156004R2301 0.310
7.5 24 10 20 – 12...20 1 0 AF16Z-30-10S-20 1SBL176004R2010 0.310
0 1 AF16Z-30-01S-20 1SBL176004R2001 0.310
24...60 20...60 1 0 AF16Z-30-10S-21 1SBL176004R2110 0.310
0 1 AF16Z-30-01S-21 1SBL176004R2101 0.310
48...130 48...130 1 0 AF16Z-30-10S-22 1SBL176004R2210 0.310
0 1 AF16Z-30-01S-22 1SBL176004R2201 0.310
100...250 100...250 1 0 AF16Z-30-10S-23 1SBL176004R2310 0.310
0 1 AF16Z-30-01S-23 1SBL176004R2301 0.310
11 35 – – – 12...20 0 0 AF26Z-30-00S-20 1SBL236004R2000 0.360
24...60 20...60 0 0 AF26Z-30-00S-21 1SBL236004R2100 0.360
48...130 48...130 0 0 AF26Z-30-00S-22 1SBL236004R2200 0.360
100...250 100...250 0 0 AF26Z-30-00S-23 1SBL236004R2300 0.360
Note: Only AF..Z..S contactors with DC control voltage 12...20 V DC need to respect the connection polarities indicated close to the
coil terminals: A1+ for the positive pole and A2- for the negative pole.

Main dimensions mm, inches
77 3.03" 86 3.38"
45 1.77" 71 2.79" 45 1.77" 80 3.15"
5.5 5.5
0.22" 0.22"
11.5 0.45" 10 0.39"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 82.5 3.24" 35 mm EN/IEC 60715 5.5 0.22"

10 0.39" 10 0.39" 1SBC101709S0201 - Rev. A
AF09Z..S, AF12Z..S, AF16Z..S AF26Z..S

ABB | 6/47
