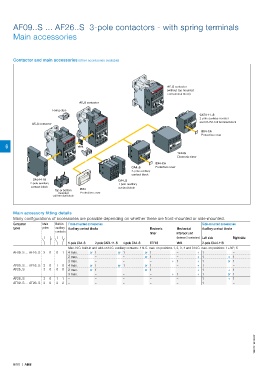

AF09..S ... AF26..S 3-pole contactors - with spring terminals

Main accessories

Contactor and main accessories (other accessories available)

AF..S contactor
(without top mounted
coil terminal block)
AF..S contactor
Fixing clips
CAT4-11..S
2-pole auxiliary contact
and A1/A2 coil terminal block
AF..S contactor
BX4-CA
Protective cover

6 VM4
TEF4S
Electronic timer
BX4-CA
CA4..S Protective cover
4-pole auxiliary
contact block
CAL4-11S CA4..S
2-pole auxiliary 1-pole auxiliary
contact block contact block
Top or bottom BX4
mounted Protective cover
coil terminal block

Main accessory fitting details
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Built-in Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Electronic Mechanical Auxiliary contact blocks
contacts
timer interlock unit
(between 2 contactors) Left side Right side
1-pole CA4..S 2-pole CAT4-11..S 4-pole CA4..S TEF4S VM4 2-pole CAL4-11S
Max. N.C. built-in and add-on N.C. auxiliary contacts: 4 N.C. max. on positions 1, 2, 3, 4 and 3 N.C. max. on positions 1 ±30°, 5
AF09..S ... AF16..S 3 0 0 1 4 max. or 1 or 1 or 1 – + 1 –
2 max. – – or 1 – + 1 + 1
3 max. – – – + 1 + 1 or 1
AF09..S ... AF16..S 3 0 1 0 4 max. or 1 or 1 or 1 – + 1 –
AF26..S 3 0 0 0 2 max. or 1 – or 1 – + 1 + 1
3 max. – – – + 1 + 1 or 1
AF26..S 3 0 1 1 – – – – – 1 + 1
AF09..S ... AF26..S 3 0 2 2 – – – – – 1 –

1SBC101661S0201
