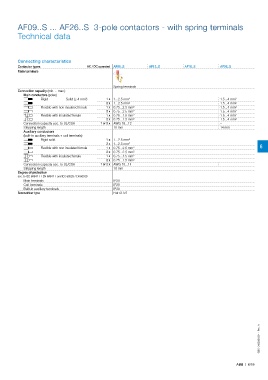

AF09..S ... AF26..S 3-pole contactors - with spring terminals

Technical data

Connecting characteristics
Contactor types AC / DC operated AF09..S AF12..S AF16..S AF26..S
Main terminals

Spring terminals
Connection capacity (min. ... max.)
Main conductors (poles)
Rigid Solid (≤ 4 mm²) 1 x 1...2.5 mm² 1.5...4 mm²
2 x 1...2.5 mm² 1.5...4 mm²
Flexible with non insulated ferrule 1 x 0.75...2.5 mm² 1.5...4 mm²
2 x 0.75...2.5 mm² 1.5...4 mm²
Flexible with insulated ferrule 1 x 0.75...1.5 mm² 1.5...4 mm²
2 x 0.75...1.5 mm² 1.5...4 mm²
Connection capacity acc. to UL/CSA 1 or 2 x AWG 18...12 –
Stripping length 10 mm 14 mm
Auxiliary conductors
(built-in auxiliary terminals + coil terminals)
Rigid solid 1 x 1...2.5 mm²
2 x 1...2.5 mm²
Flexible with non insulated ferrule 1 x 0.75...2.5 mm² 6
2 x 0.75...2.5 mm²
Flexible with insulated ferrule 1 x 0.75...1.5 mm²
2 x 0.75...1.5 mm²
Connection capacity acc. to UL/CSA 1 or 2 x AWG 18...14 –
Stripping length 10 mm
Degree of protection
acc. to IEC 60947-1 / EN 60947-1 and IEC 60529 / EN 60529
Main terminals IP20
Coil terminals IP20
Built-in auxiliary terminals IP20
Screwdriver type Flat Ø 3.5

1SBC101689S0201 - Rev. A

ABB | 6/55
