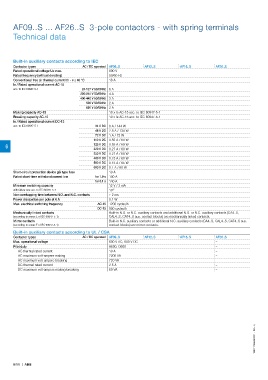

Page 680 - Motor_protection_and_control_Manual_motor_starters_ contactors

AF09..S ... AF26..S 3-pole contactors - with spring terminals

Technical data

Built-in auxiliary contacts according to IEC
Contactor types AC / DC operated AF09..S AF12..S AF16..S AF26..S
Rated operational voltage Ue max. 690 V
Rated frequency (without derating) 50/60 Hz
Conventional free air thermal current Ith - θ ≤ 40 °C 16 A
Ie / Rated operational current AC-15
acc. to IEC 60947-5-1 24-127 V 50/60 Hz 6 A
220-240 V 50/60 Hz 4 A
400-440 V 50/60 Hz 3 A
500 V 50/60 Hz 2 A
690 V 50/60 Hz 2 A
Making capacity AC-15 10 x Ie AC-15 acc. to IEC 60947-5-1
Breaking capacity AC-15 10 x Ie AC-15 acc. to IEC 60947-5-1
Ie / Rated operational current DC-13
acc. to IEC 60947-5-1 24 V DC 6 A / 144 W
48 V DC 2.8 A / 134 W
72 V DC 1 A / 72 W
110 V DC 0.55 A / 60 W
6 125 V DC 0.55 A / 69 W
220 V DC 0.27 A / 60 W
250 V DC 0.27 A / 68 W
400 V DC 0.15 A / 60 W
500 V DC 0.13 A / 65 W
600 V DC 0.1 A / 60 W
Short-circuit protection device gG type fuse 10 A
Rated short-time withstand current Icw for 1.0 s 100 A
for 0.1 s 140 A
Minimum switching capacity 12 V / 3 mA
with failure rate acc. to IEC 60947-5-4 10 -7
Non-overlapping time between N.O. and N.C. contacts ≥ 2 ms
Power dissipation per pole at 6 A 0.1 W
Max. electrical switching frequency AC-15 1200 cycles/h
DC-13 900 cycles/h
Mechanically linked contacts Built-in N.O. or N.C. auxiliary contacts and additional N.O. or N.C. auxiliary contacts (CA4..S,
(according to annex L of IEC 60947-5-1) CAL4..S, CAT4..S aux. contact blocks) are mechanically linked contacts.
Mirror contacts Built-in N.C. auxiliary contacts or additional N.C. auxiliary contacts (CA4..S, CAL4..S, CAT4..S aux.
(according to annex F of IEC 60947-4-1) contact blocks) are mirror contacts.
Built-in auxiliary contacts according to UL / CSA
Contactor types AC / DC operated AF09..S AF12..S AF16..S AF26..S
Max. operational voltage 600 V AC, 600 V DC –
Pilot duty A600, Q600 –
AC thermal rated current 10 A –
AC maximum volt-ampere making 7200 VA –
AC maximum volt-ampere breaking 720 VA –
DC thermal rated current 2.5 A –
DC maximum volt-ampere making-breaking 69 VA –
