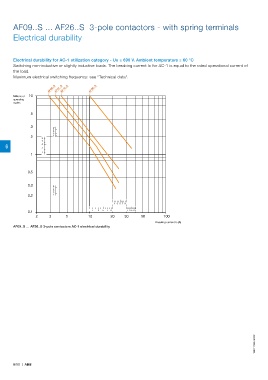

AF09..S ... AF26..S 3-pole contactors - with spring terminals

Electrical durability

Electrical durability for AC-1 utilization category - Ue ≤ 690 V. Ambient temperature ≤ 60 °C
Switching non-inductive or slightly inductive loads. The breaking current Ic for AC-1 is equal to the rated operational current of
the load.
Maximum electrical switching frequency: see "Technical data".
AF09..S AF12..S AF16..S AF26..S

Millions of 10
operating
cycles

5

3 9
7
5
3
2 1
9
7
6 5 3
1
1

0.5

0.3 9
7
5
3
0.2 1
13 57 9
0.1 1 3 5 7 9 13 57 9
2 3 5 10 20 30 50 100
Breaking current Ic (A)
AF09..S … AF26..S 3-pole contactors AC-1 electrical durability

1SBC101934S0201

6/58 | ABB
