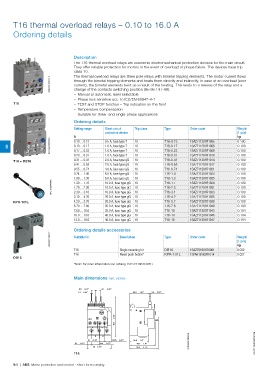

T16 thermal overload relays – 0.10 to 16.0 A
Ordering details

Description
The T16 thermal overload relays are economic electromechanical protection devices for the main circuit.
They offer reliable protection for motors in the event of overload or phase failure. The devices have trip
class 10.
The thermal overload relays are three pole relays with bimetal tripping elements. The motor current flows
2CDC231009F0013 through the bimetal tripping elements and heats them directly and indirectly. In case of an overload (over
current), the bimetal elements bent as a result of the heating. This leads to a release of the relay and a
change of the contacts switching position (95-96 / 97-98).
– Manual or automatic reset selectable
– Phase loss sensitive acc. to IEC/EN 60947-4-1
T16 – TEST and STOP function – Trip indication on the front
– Temperature compensation
– Suitable for three- and single-phase applications
Ordering details
Setting range Short-circuit Trip class Type Order code Weight
protective device (1 pce)
A 0.5 A, fuse type T 10 T16-0.13 1SAZ711201R1005 kg
2CDC231025F0013 0.17 ... 0.23 1.0 A, fuse type T 10 T16-0.23 1SAZ711201R1009 0.100
0.10 ... 0.13
0.100
6 0.13 ... 0.17 1.0 A, fuse type T 10 T16-0.17 1SAZ711201R1008 0.100
0.23 ... 0.31
0.100
T16-0.41
10
0.31 ... 0.41 1.0 A, fuse type T 10 T16-0.31 1SAZ711201R1013 0.100
2.0 A, fuse type gG
1SAZ711201R1014
T16 + DB16
0.41 ... 0.55 2.0 A, fuse type gG 10 T16-0.55 1SAZ711201R1017 0.100
0.55 ... 0.74 4.0 A, fuse type gG 10 T16-0.74 1SAZ711201R1021 0.100
0.74 ... 1.00 6.0 A, fuse type gG 10 T16-1.0 1SAZ711201R1023 0.100
1.00 ... 1.30 6.0 A, fuse type gG 10 T16-1.3 1SAZ711201R1025 0.100
1SFC151224F0002 1.30 ... 1.70 10.0 A, fuse type gG 10 T16-1.7 1SAZ711201R1028 0.100
1.70 ... 2.30
10.0 A, fuse type gG
1SAZ711201R1031
0.100
10
T16-2.3
10.0 A, fuse type gG
T16-3.1
10
1SAZ711201R1033
0.100
2.30 ... 3.10
3.10 ... 4.20 20.0 A, fuse type gG 10 T16-4.2 1SAZ711201R1035 0.100
KPR-101L 4.20 ... 5.70 20.0 A, fuse type gG 10 T16-5.7 1SAZ711201R1038 0.100
5.70 ... 7.60 35.0 A, fuse type gG 10 T16-7.6 1SAZ711201R1040 0.100
7.60 ... 10.0 35.0 A, fuse type gG 10 T16-10 1SAZ711201R1043 0.104
10.0 ... 13.0 40.0 A, fuse type gG 10 T16-13 1SAZ711201R1045 0.104
13.0 ... 16.0 40.0 A, fuse type gG 10 T16-16 1SAZ711201R1047 0.104
Ordering details accessories
2CDC231002F0011 Suitable for Description Type Order code Weight
(1 pce)
kg
T16
KPR-101L
1SFA616162R1014
0.027
T16 Single mounting kit DB16 1SAZ701901R0001 0.032
Reset push button*
DB16
*Note: for more information see catalog 1SFC151004C0201
Main dimensions mm, inches
8.6 0.34" 9.1 0.36"
1.2 0.05" 36.9 1.45" 2.4 0.09"
3.02"
76.7
2CDC232008F0008
9.1 0.36" 12.35 0.49" 35.6 1.4"
8.1 0.32" 14.4 0.57" 48.2 1.9" 2CDC106036C0201a
45 1.77" 53.5 2.11"
T16
