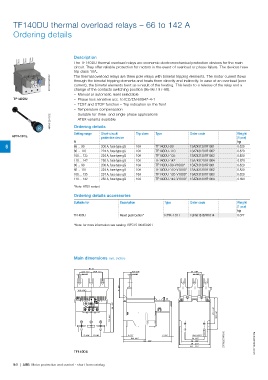

TF140DU thermal overload relays – 66 to 142 A
Ordering details

Description
The TF140DU thermal overload relays are economic electromechanical protection devices for the main
circuit. They offer reliable protection for motors in the event of overload or phase failure. The devices have
trip class 10A.
The thermal overload relays are three pole relays with bimetal tripping elements. The motor current flows
2CDC231012F0012 through the bimetal tripping elements and heats them directly and indirectly. In case of an overload (over
current), the bimetal elements bent as a result of the heating. This leads to a release of the relay and a
change of the contacts switching position (95-96 / 97-98).
– Manual or automatic reset selectable
TF140DU – Phase loss sensitive acc. to IEC/EN 60947-4-1
– TEST and STOP function – Trip indication on the front
– Temperature compensation
– Suitable for three- and single-phase applications
1SFC151224F0002 Ordering details
– ATEX variants available

Setting range Short-circuit Trip class Type Order code Weight
KPR-101L protective device (1 pce)
A kg
6 66 ... 90 200 A, fuse type gG 10A TF140DU-90 1SAZ431201R1001 0.820
80 ... 110 224 A, fuse type gG 10A TF140DU-110 1SAZ431201R1002 0.820
100 ... 135 224 A, fuse type gG 10A TF140DU-135 1SAZ431201R1003 0.820
110 ... 142 250 A, fuse type gG 10A TF140DU-142 1SAZ431201R1004 0.820
66 ... 90 200 A, fuse type gG 10A TF140DU-90-V1000* 1SAZ431301R1001 0.820
80 ... 110 224 A, fuse type gG 10A TF140DU-110-V1000* 1SAZ431301R1002 0.820
100 ... 135 224 A, fuse type gG 10A TF140DU-135-V1000* 1SAZ431301R1003 0.820
110 ... 142 250 A, fuse type gG 10A TF140DU-142-V1000* 1SAZ431301R1004 0.820
*Note: ATEX variant
Ordering details accessories

Suitable for Description Type Order code Weight
(1 pce)
kg
TF140DU Reset push button* KPR-101L 1SFA616162R1014 0.027

*Note: for more information see catalog 1SFC151004C0201

Main dimensions mm, inches

89 3.5"
29.75 1.17" 29.75 1.17" 19.9 0.78" 37 1.46"
6.4 3.5" 4 0.16" 5.5 0.22"

51 2.01"
13.45 0.53"

140 5.51"
98 97 96 95 67.3 2.65" 82.3 3.24"
73.8 2.91"

2/T1 4/T2 6/T3
25 0.98" 25 0.98" 8 0.31" 6 0.24" 5.3 0.21"
58.8 2.31" 50 1.97" 2CDC232008F0012
126 4.96" 68 2.68"
80 3.15" 2CDC106054C0201a
84.2 3.31"
TF140DU
