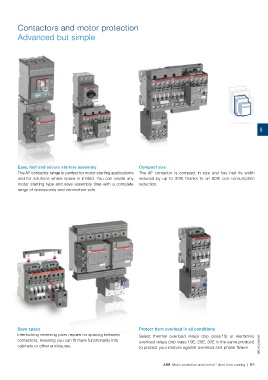

Contactors and motor protection

Advanced but simple

5

Easy, fast and secure starters assembly Compact size
The AF contactor range is perfect for motor starting applications The AF contactor is compact in size and has had its width
and for solutions where space is limited. You can create any reduced by up to 30% thanks to an 80% coil consumption
motor starting type and save assembly time with a complete reduction.
range of accessories and connection sets.

Save space Protect from overload in all conditions
Interlocking reversing pairs require no spacing between Select thermal overload relays (trip class 10) or electronic
contactors, meaning you can fit more functionality into overload relays (trip class 10E, 20E, 30E in the same product)
cabinets or other enclosures. to protect your motors against overload and phase failure. 1SBC100202S0201

ABB Motor protection and control - short form catalog | 5/5
