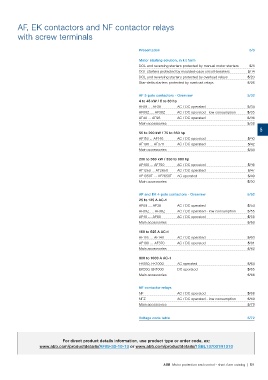

AF, EK contactors and NF contactor relays

with screw terminals

Presentation 5/3

Motor starting solution, in kit form
DOL and reversing starters protected by manual motor starters 5/8
DOL starters protected by moulded-case circuit-breakers 5/14
DOL and reversing starters protected by overload relays 5/20
Star-delta starters protected by overload relays 5/26

AF 3-pole contactors - Overview 5/32
4 to 45 kW / 5 to 60 hp
AF09 … AF38 AC / DC operated 5/34
AF09Z … AF38Z AC / DC operated - low consumption 5/35
AF40 ... AF96 AC / DC operated 5/36
Main accessories 5/38
5
55 to 200 kW / 75 to 350 hp
AF116 ... AF146 AC / DC operated 5/40
AF190 ... AF370 AC / DC operated 5/42
Main accessories 5/44

200 to 560 kW / 350 to 900 hp
AF400 ... AF750 AC / DC operated 5/46
AF1250 ... AF2650 AC / DC operated 5/47
AF1350T ... AF2650T AC operated 5/49
Main accessories 5/50

AF and EK 4-pole contactors - Overview 5/52
25 to 125 A AC-1
AF09 … AF38 AC / DC operated 5/54
AF09Z … AF38Z AC / DC operated - low consumption 5/55
AF40 … AF80 AC / DC operated 5/56
Main accessories 5/58

160 to 525 A AC-1
AF116 … AF140 AC / DC operated 5/60
AF190 … AF370 AC / DC operated 5/61
Main accessories 5/62

800 to 1000 A AC-1
EK550, EK1000 AC operated 5/64
EK550, EK1000 DC operated 5/65
Main accessories 5/66

NF contactor relays
NF AC / DC operated 5/68
NFZ AC / DC operated - low consumption 5/69
Main accessories 5/70

Voltage code table 5/72

For direct product details information, use product type or order code, ex:
www.abb.com/productdetails/AF09-30-10-13 or www.abb.com/productdetails/1SBL137001R1310

ABB Motor protection and control - short form catalog | 5/1
