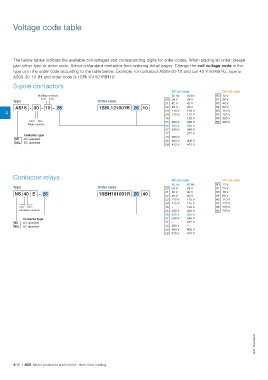

Voltage code table

The below tables indicate the available coil voltages and corresponding digits for order codes. When placing an order, please
give either type or order code. Select a standard contactor from ordering detail pages. Change the coil voltage code in the
type or in the order code according to the table below. Example: for contactor AS09-30-10 and coil 42 V 50/60 Hz, type is
AS09-30-10-21 and order code is 1SBL101001R2110.
3-pole contactors
AC coil code DC coil code
Auxiliary contacts 50 Hz 60 Hz 80 12 V
N.O. N.C. 20 24 V 24 V 81 24 V
Type Order code
21 42 V 42 V 83 48 V
AS16 - 30 - 10 - 26 1SBL121001R 26 10 22 48 V 48 V 84 60 V
4 23 110 V 110 V 86 110 V
24 115 V
87 125 V
115 V
16 – 120 V 88 220 V
N.O. N.C. 25 220 V 220 V 89 240 V
Main contacts
26 230 V 230 V
27 240 V 240 V
17 – 277 V
Contactor type 13 380 V –
AS AC operated 28 400 V 400 V
ASL DC operated
29 415 V 415 V

Contactor relays
AC coil code DC coil code
50 Hz 60 Hz 80 12 V
Type Order code 20 24 V 24 V 81 24 V
NS 40 E - 26 1SBH101001R 26 40 21 42 V 42 V 83 48 V
84 60 V
22 48 V
48 V
23 110 V 110 V 86 110 V
24 115 V 115 V 87 125 V
N.O. N.C. 16 – 120 V 88 220 V
Number contacts 25 220 V 220 V 89 240 V
26 230 V 230 V
Contactor type 27 240 V 240 V
NS AC operated 17 – 277 V
NSL DC operated 13 380 V –
28 400 V 400 V
29 415 V 415 V

1SBC101600S0201
