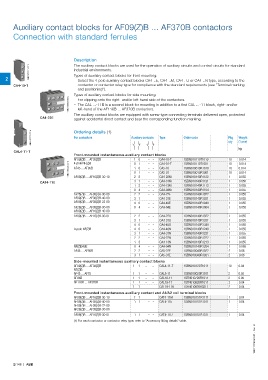

Auxiliary contact blocks for AF09(Z)B ... AF370B contactors

Connection with standard ferrules

Description
The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard
1SBC100001V0014 industrial environments.
Types of auxiliary contact blocks for front mounting:
2 – Select the 4-pole auxiliary contact blocks CA4-..E, CA4-..M, CA4-..U or CA4-..N type, according to the
CA4-10-T contactor or contactor relay type for compliance with the standard requirements (see "Terminal marking
and positioning").
Types of auxiliary contact blocks for side mounting:
1SBC100006V0014 – For clipping onto the right- and/or left-hand side of the contactors.
– The CAL ...-11B is a second block for mounting in addition to a first CAL ...-11 block, right- and/or
left-hand of the AF116B ... AF370B contactors.
The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected
CA4-22E against accidental direct contact and bear the corresponding function marking.

1SBC100007V0014 Ordering details (1) Auxiliary contacts Type Order code Pkg Weight
For contactors
(1 pce)
qty
kg
CAL4-11-T
Front-mounted instantaneous auxiliary contact blocks
AF09(Z)B ... AF38(Z)B 1 0 – – CA4-10-T 1SBN010110T1010 10 0.014
4-pole NF(Z)B
1SBC100002V0014 AF45 ... AF95B 1 0 – – CA5-10 1SBN010010R1010 10 0.014
1SBN010110T1001
CA4-01-T
0 1
10
0.014
– –
– –
0 1
0.014
10
1SBN010010R1001
CA5-01
– –
0.055
CA4-31M
1SBN010140R1131
3 1
CAT4-11E AF09(Z)B ... AF16(Z)B-30-10 2 2 – – CA4-22M 1SBN010140R1122 1 1 0.055
1 3 – – CA4-13M 1SBN010140R1113 1 0.055
0 4 – – CA4-04M 1SBN010140R1104 1 0.055
AF26(Z)B ... AF38(Z)B-30-00 2 2 – – CA4-22E 1SBN010140R1022 1 0.055
AF09(Z)B ... AF38(Z)B-40-00 3 1 – – CA4-31E 1SBN010140R1031 1 0.055
AF09(Z)B ... AF38(Z)B-22-00 4 0 – – CA4-40E 1SBN010140R1040 1 0.055
AF26(Z)B ... AF38(Z)B-30-00 0 4 – – CA4-04E 1SBN010140R1004 1 0.055
AF09(Z)B ... AF16(Z)B-40-00
AF09(Z)B ... AF16(Z)B-30-01 2 2 – – CA4-22U 1SBN010140R1322 1 0.055
3 1 – – CA4-31U 1SBN010140R1331 1 0.055
4 0 – – CA4-40U 1SBN010140R1340 1 0.055
4-pole NF(Z)B 4 0 – – CA4-40N 1SBN010140R1240 1 0.055
3 1 – – CA4-31N 1SBN010140R1231 1 0.055
2 2 – – CA4-22N 1SBN010140R1222 1 0.055
1 3 – – CA4-13N 1SBN010140R1213 1 0.055
NF(Z)B40E 0 4 – – CA4-04N 1SBN010140R1204 1 0.055
AF45 ... AF95B 2 2 – – CA5-22E 1SBN010040R1022 2 0.06
3 1 – – CA5-31E 1SBN010040R1031 2 0.06
Side-mounted instantaneous auxiliary contact blocks
AF09(Z)B ... AF38(Z)B 1 1 – – CAL4-11-T 1SBN010120T1011 10 0.04
NF(Z)B
AF45 ... AF75 1 1 – – CAL5-11 1SBN010020R1011 2 0.05
AF95B 1 1 – – CAL18-11 1SFN010720R1011 2 0.05
AF116B ... AF370B 1 1 – – CAL19-11 1SFN010820R1011 2 0.04
1 1 – – CAL19-11B 1SFN010820R3311 2 0.04
Front-mounted instantaneous auxiliary contact and A1/A2 coil terminal blocks
AF09(Z)B ... AF16(Z)B-30-10 1 1 – – CAT4-11M 1SBN010151R1111 1 0.04
AF09(Z)B ... AF38(Z)B-40-00 1 1 – – CAT4-11E 1SBN010151R1011 1 0.04
AF09(Z)B ... AF38(Z)B-22-00
AF26(Z)B ... AF38(Z)B-30-00
AF09(Z)B ... AF16(Z)B-30-01 1 1 – – CAT4-11U 1SBN010151R1311 1 0.04
(1) For each contactor or contactor relay type, refer to "Accessory fitting details" table.
